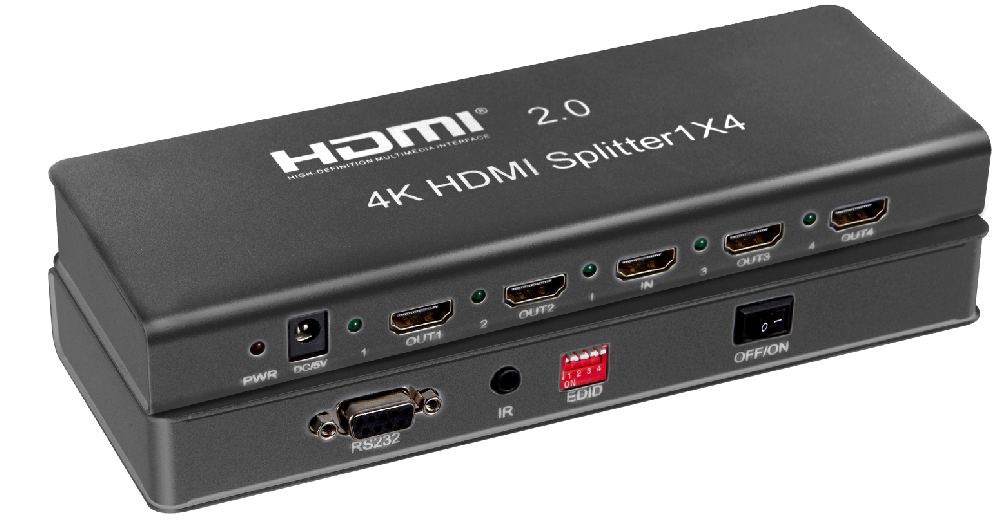

Overview:

The 1x4 HDMI Splitter uses a single HDMI source,accessing to multiple HDMI sinks.It

allows one HDMI device to be split easily to 4 HDMI compatible monitors or projectors. In

addition，it can be placed at the end of a long HDMI cable to regenerate the HDMI signal.

The resolutionof this hdmi splitter can be up to 3840X2160/60Hz.This product can support

EDID management function, comes with eight kinds of EDID mode, the users can choose

according to their own needs. In addition, it is with built-in IR extension function, it can

work with our hdmi 2.0 repeater which has IR-RX to receive the IR command to control

the source.

Features

l Support HDMI 2.0 ,HDCP2.2

l Support HDR

l Support 3D video format

l Support CEC (only output1)

l Support high resolution up to 3840X2160/60HZ

l Support the max baud rate of 6G and TMDS clock can be up to 600 MHz

l Support 8/10/12 bit deep color

l Support AWG26 HDMI standard cable:

（1）when the resolution is 1080p and below, input up to 8 meters,output to 8 meters.

（2）when the resolution is 4K, input up to 8 meters, output up to 8 meters.

l Support single HDMI source，accessing to multiple HDMI sinks, the source can

l be DVD player, A/V receiver, set top box and etc.

l Built-in IR extension function.( it can work with our hdmi 2.0 repeater which has

l IR-RX to receive the IR command to remote control the source)

l Support serial port online upgrade

l Support EDID management

l 5V/2A power adapter

Package Includes

1 x HDMI Splitter

1 x Power Adapter

1 x User’s Manual

1 x IR cable (optional)

2 x HDMI repeater (optional)

Installation

1) connect the HD source to the splitter input with one hdmi cable

2) connect the splitter output to the diaplays with 4 hdmi cables

3) connect 5V/2A power adapter to the splitter
