product description

 HDMI digital video distributor;

1. An HDMI digital video splitter that enables distortion-free simultaneous display of a single HDMI input signal across 2, 4, 8, 10, or 16 HDMI outputs.

2. The HDMI video splitter supports ultra HD video resolution up to 4K (3840x2160@60Hz) and full HD 3D stereoscopic display, providing a wider screen and the best work experience.

3. HDMI video splitter can display on 2/4/8/10/16 display devices simultaneously；

The device is easy to install and use, requiring only cable insertion into its designated ports. No software configuration is needed, and compatibility issues are avoided. It works seamlessly across multiple operating systems including Windows, Linux, and Mac.

Product connection requirements

1. PC version: 1 HDMI cable，

2. User interface: 2/4/8/10/16 monitors with HDMI ports;

product picture

Work mode description:

The product operates in two modes: normal and upgrade, determined by the DIP EDID DIP switch (bit 1). A value of 1 enables upgrade mode, while 0 activates normal mode.

IR extension description:

  This product features an IR_TX expansion port that can be paired with an optional HDMI 2.0 amplifier. The amplifier's IR_RX port extends the IR signal through an HDMI cable, enabling IR signal extension.

attended operation:

1:Connect the HD signal source to the distributor input port via a single HDMI cable..

2: Connect the display to the distributor output via two HDMI cables.

3: Connect the 5V/1.5A power adapter to the distributor

container loading list

Thank you for using our products. Please open the packaging and first check the product packing list.

Product packing list：

√ SP102H               one

√ DC5V power adapter      one

√ operating instruction                     a part

√ Warranty card certificate        One copy each

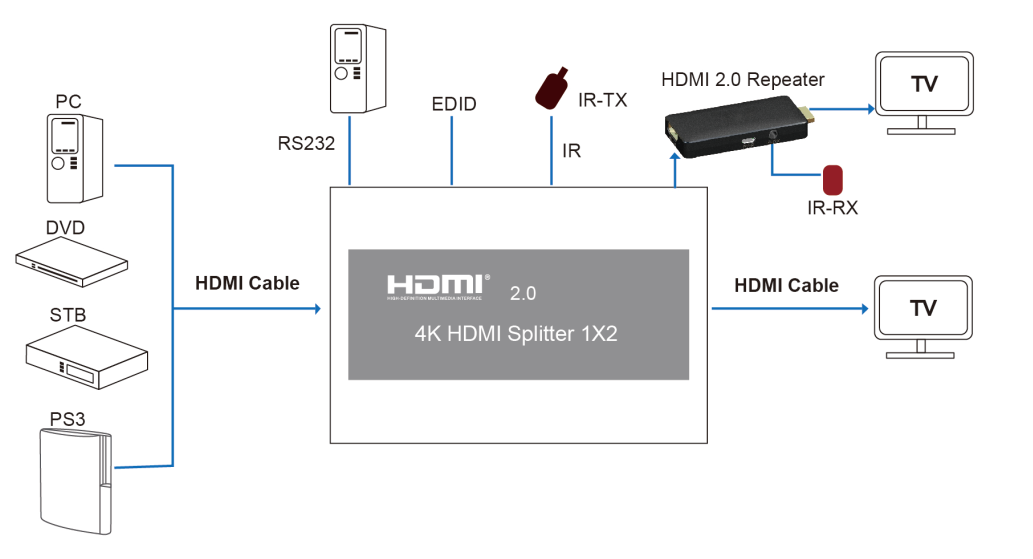

Product Diagram

Product Parameter
