product description

DVI digital video distributor;

1. A DVI digital video distributor that enables distortion-free display of a single DVI input signal across two or four, eight, or sixteen DVI output ports simultaneously.

2. The DVI video distributor supports HD video resolution up to 1920×1200@60Hz and full HD 3D stereoscopic display, providing users with a wider screen and the best work experience.

3. The DVI video distributor supports simultaneous display on 2, 4, 8, or 16 DVI display devices, with expandable cascading capability for additional screen displays.

4. The device is easy to install and use, requiring only cable insertion into its designated ports. No software configuration is needed, and compatibility issues are eliminated. It works seamlessly across multiple operating systems including Windows, Linux, and Mac.

Product connection requirements

PC: 1 DVI cable;

User interface: DVI monitor;

product picture

Product Features

l 1 DVI digital video input, 2 or 4/8/16 digital video outputs simultaneously;

l The video resolution can reach 1920x1200@60Hz;

l DVI digital bandwidth: 1.65GHz; (analog bandwidth: 165MHz)

l Maximum input distance: 15 meters;

l Cascade expansion to increase the number of screen displays;

l Port ESD protection capability: 10 kV;

l Supports mainstream operating systems including Windows, Linux, and Mac;

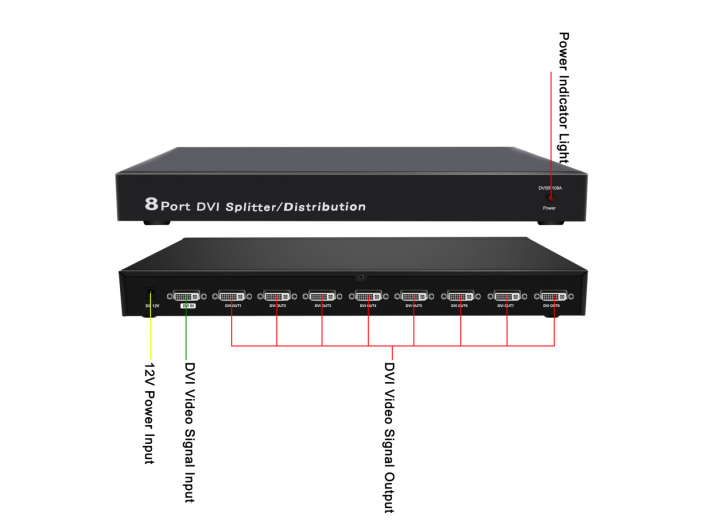

 interface function

container loading list

Thank you for using our products. Please open the packaging and first check the product packing list.

Product packing list：

√ SP108D                                               one

√DVI video cable                                  one

√12V/1A power adapter                      one

√  operating instruction                        a part

√ Warranty card certificate        One copy of each

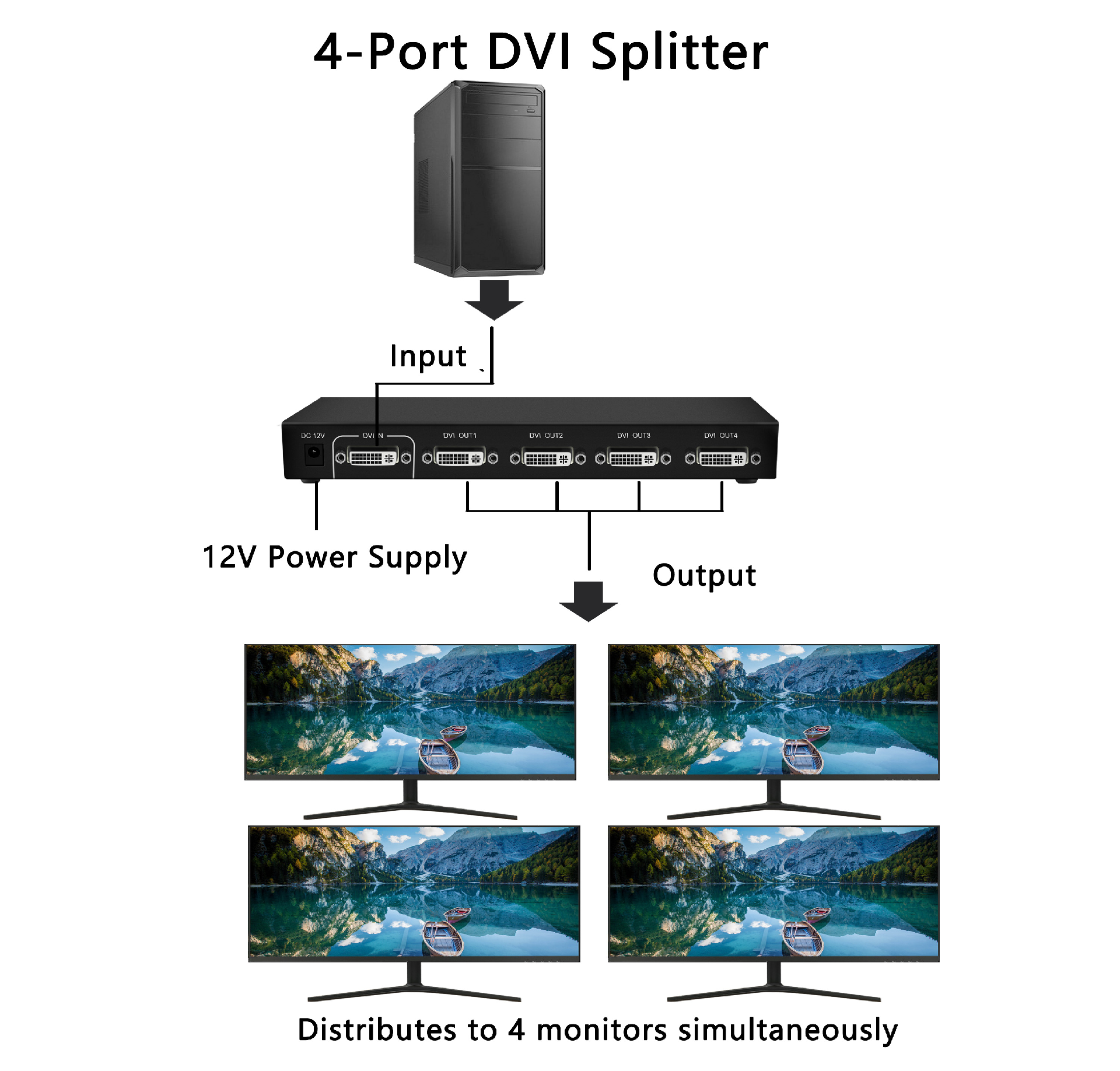

Product Diagram

specifications
