product description

DVI digital video distributor;

1. A DVI digital video distributor enables distortion-free display of a single DVI input signal across two or four, eight, or sixteen DVI output ports simultaneously.

2. The DVI video distributor supports HD video resolution up to 1920×1200@60Hz and full HD 3D stereoscopic display, enabling users to enjoy a wider screen and optimal working experience.

3. The DVI video distributor supports simultaneous display on 2, 4, 8, or 16 DVI display devices, with expandable cascading capability for additional screen displays.

4. The device is easy to install and use, requiring only cable insertion into its designated ports. No software configuration is needed, and compatibility issues are avoided. It works seamlessly across multiple operating systems including Windows, Linux, and Mac.

Product connection requirements

PC: 1 DVI cable；

User interface: a monitor with a DVI port;

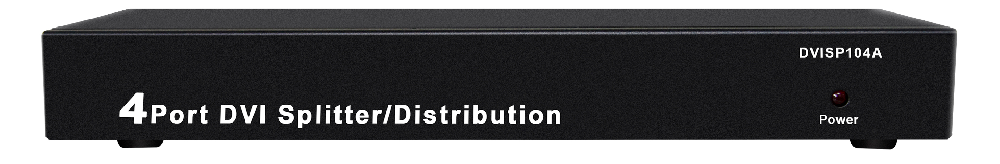

product picture

Product Features

l 1 DVI digital video input, 2 or 4/8/16 digital video outputs simultaneously;

l The video resolution can reach 1920x1200@60Hz;

l DVI digital bandwidth: 1.65GHz; (Analog bandwidth: 165MHz)

l Maximum input distance: 15 meters;

l Cascade expansion to increase the number of screen displays;

l Port ESD protection capability: 10 kV;

l Supports mainstream operating systems including Windows, Linux, and Mac;

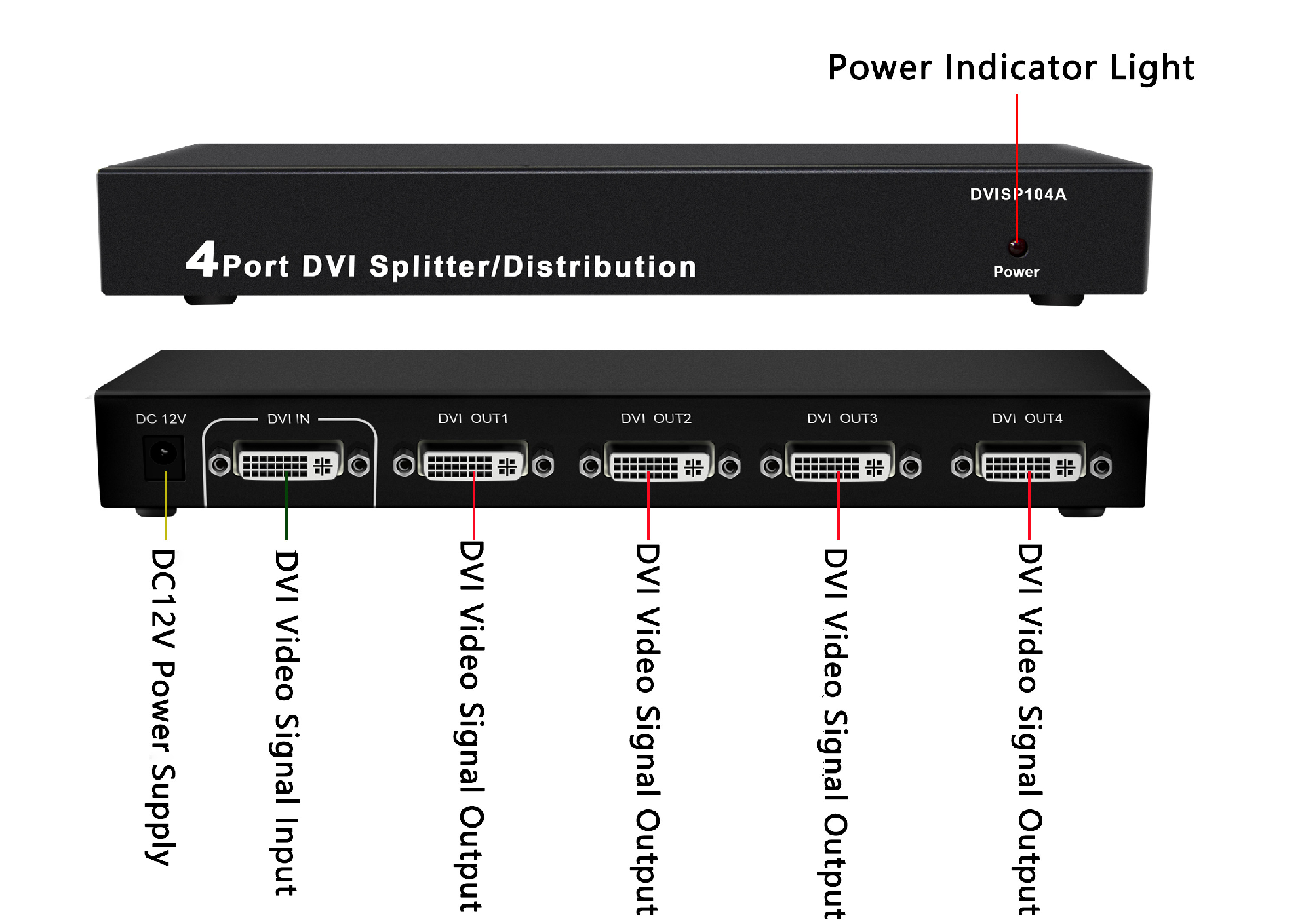

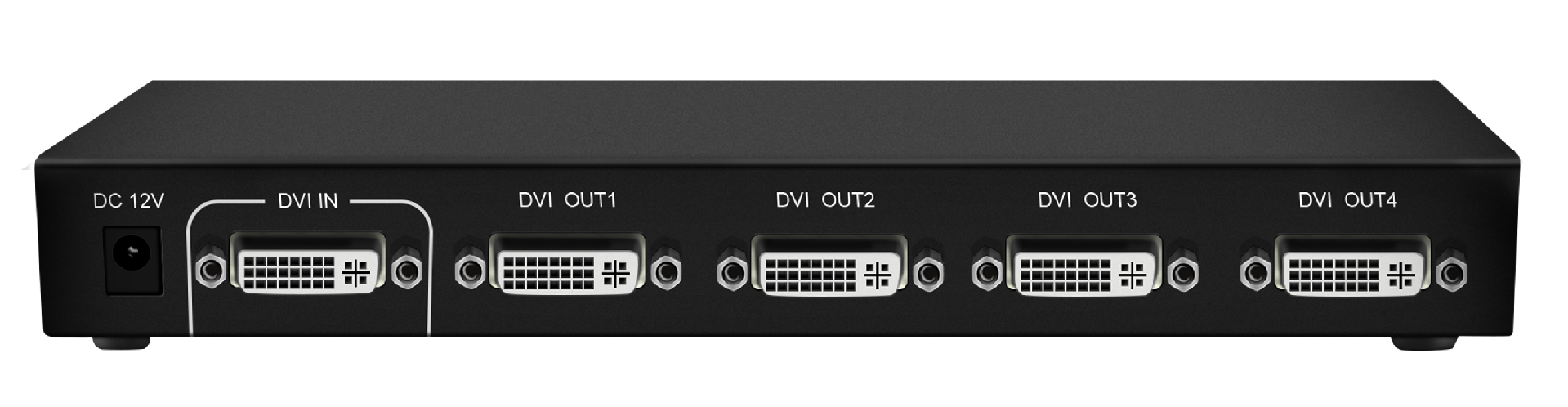

interface function

Packing list

Thank you for using our products, please open the package is the first to clear the product packing list

Product Packing Details:

√ SP102D                                     One

√ The 12V / 1A power supply adapter           One

√ operating instruction                        a part

√ Warranty card certificate            One copy of each

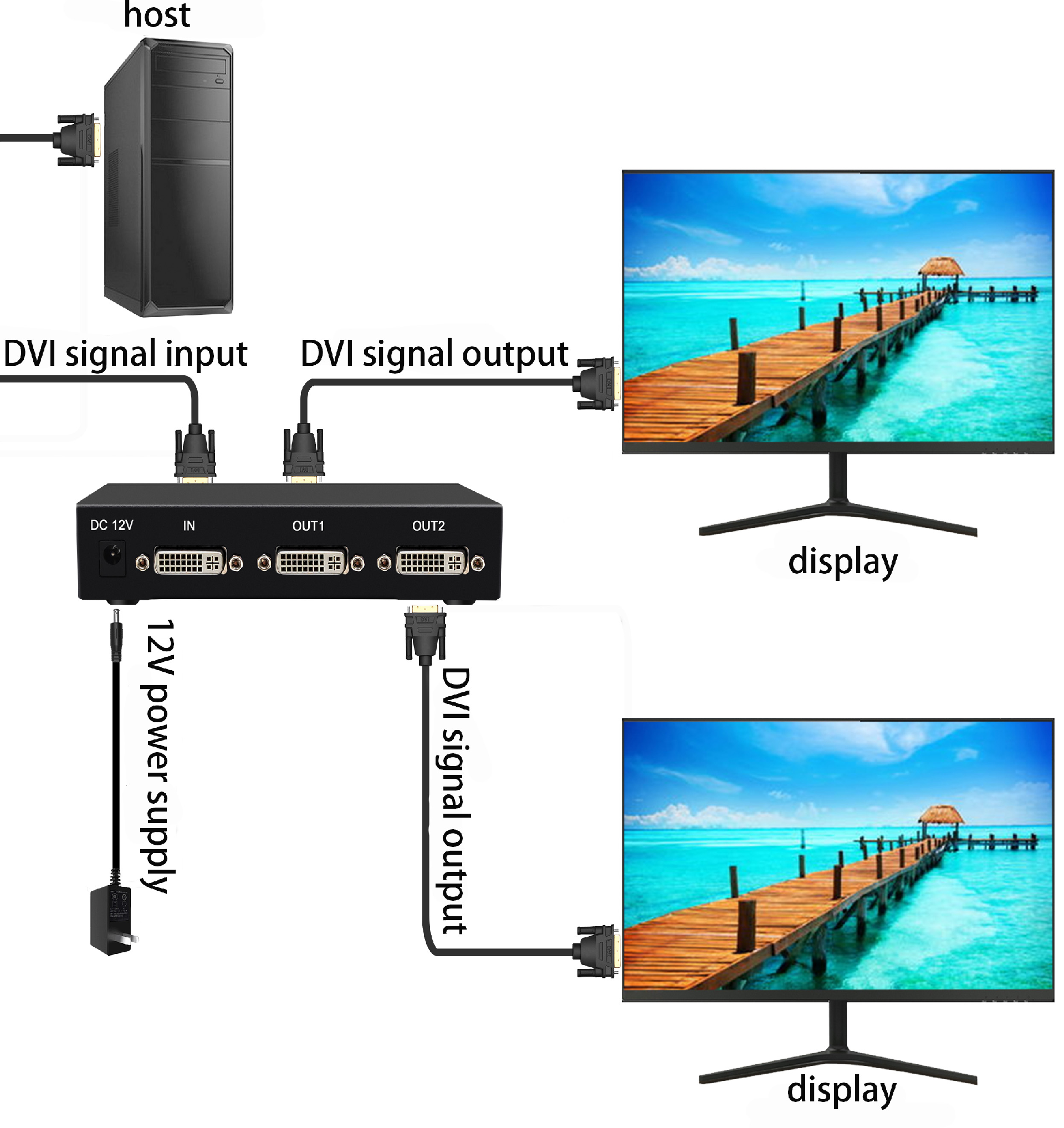

Schematic diagram of the product

pecifications
