product description

DVI Digital Video Distributor (Dual Channel);

1. A DVI digital video splitter that enables distortion-free simultaneous display of a single DVI input signal across two DVI output ports.

2. The DVI video distributor supports HD video resolution up to 2560×1600@60Hz and full HD 3D stereoscopic display, enabling users to enjoy a wider screen and optimal working experience.

3. The DVI video distributor enables simultaneous display on two DVI display devices and supports cascading expansion to increase the number of screens.

4. The device is easy to install and use, requiring only cable insertion into its designated ports. No software configuration is needed, and compatibility issues are eliminated. It works seamlessly across multiple operating systems including Windows, Linux, and Mac.

Product connection requirements

PC terminal: 1 DVI dual-channel cable;

PC terminal: 1 DVI dual-channel cable; user interface: 2 dual-channel monitors with DVI ports.

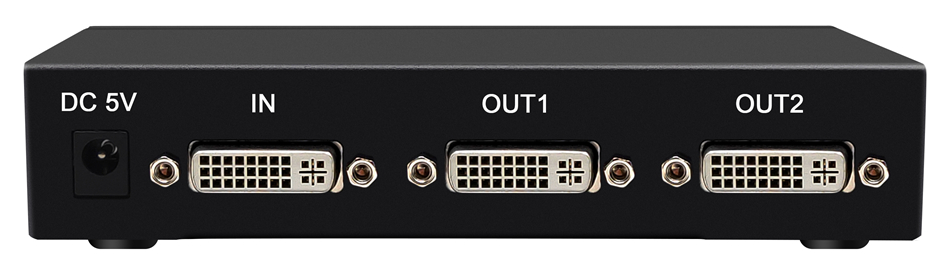

product picture

Product Features

l 1 DVI digital video input, 2 digital video outputs；

l Video resolution up to 2560x1600@60Hz, 1920*1080@120Hz；

l DVI digital bandwidth 3.35GHz/ analog bandwidth 330MHz；

l Maximum input distance: 15 meters；

l Cascade expand to increase the number of screen displays；

l Port ESD protection capability: 10 kV；

l Supports mainstream operating systems such as Windows, Linux, and Mac；

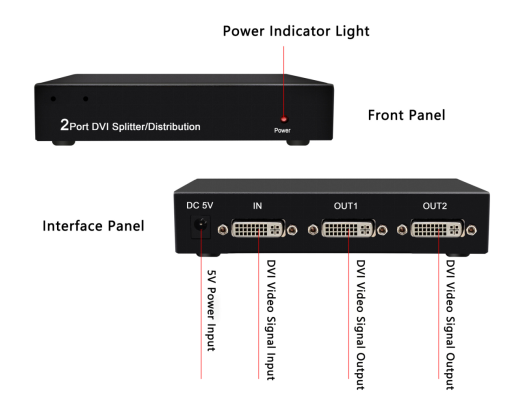

Interface Diagram

Specifications

container loading list

Thank you for using our products. Please open the packaging and first check the product packing list.

Product packing list：

√ SP102DL                     once

√ DVI Video Line               a bout

√ 5V/1APower adapter          once

√ perating instruction           a part

√ Warranty card certificate      One copy each

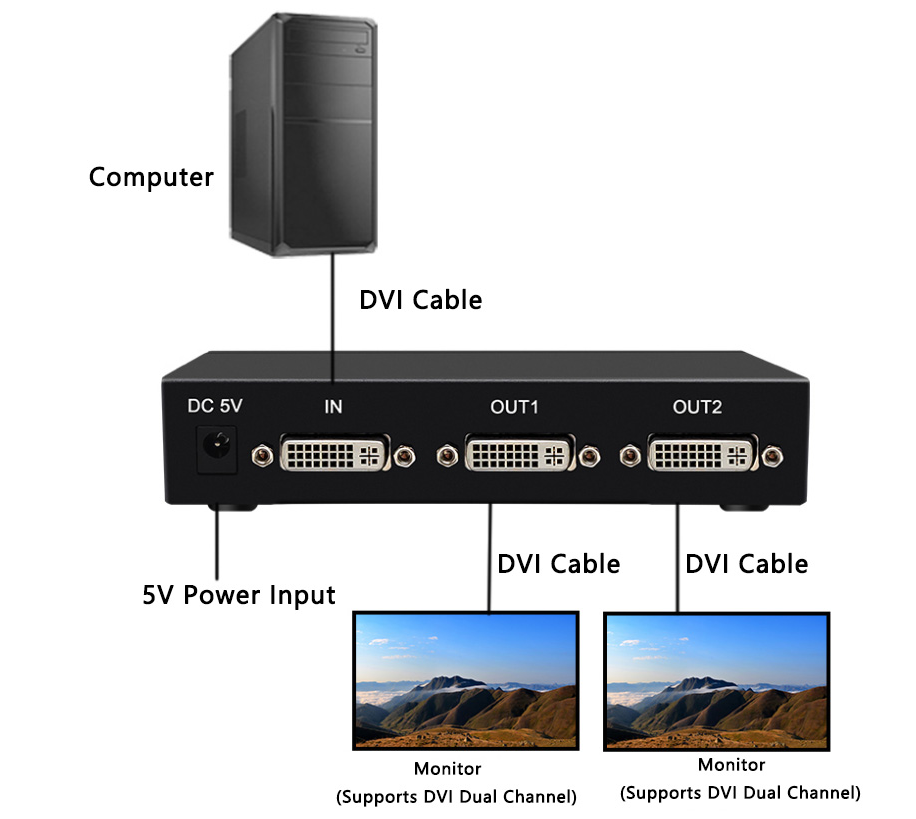

topological graph
