Product Description:

1.This DVI digital video splitter distributes 1 DVI digital video input signal to 2, 4, 8, or 16 DVI output ports simultaneously without signal degradation.

2.Supports high-definition video resolution up to 1920×1200@60Hz and full HD 3D stereoscopic display, delivering an immersive viewing experience for enhanced productivity.

3.Enables simultaneous display on 2, 4, 8, or 16 DVI monitors. Supports daisy-chaining for expanded multi-screen setups.

Installation of the device is simple and convenient, just plug the cable into its corresponding port. No software configuration is required and there are no incompatibilities. and works on multiple operating system platforms such as Windows, Linux, and Mac;

Product connectivity needs

PC side: 1 DVI cable;

User terminal: display with DVI interface;

Product images

Features

l1.1 channel DVI digital video input, 2 channels or 4, 8, 16 channels of digital video output at the same time;

l2.Video resolution up to 1920x1200@60Hz;

l3.DVI digital bandwidth 1.65GHz;

l4.Maximum input distance: 15 meters;

l5.It can be cascaded and expanded to increase the number of screen displays;

l6.Port ESD protection capability: 10 kV;

l7.Supports mainstream operating systems such as Windows, Linux, and Mac;

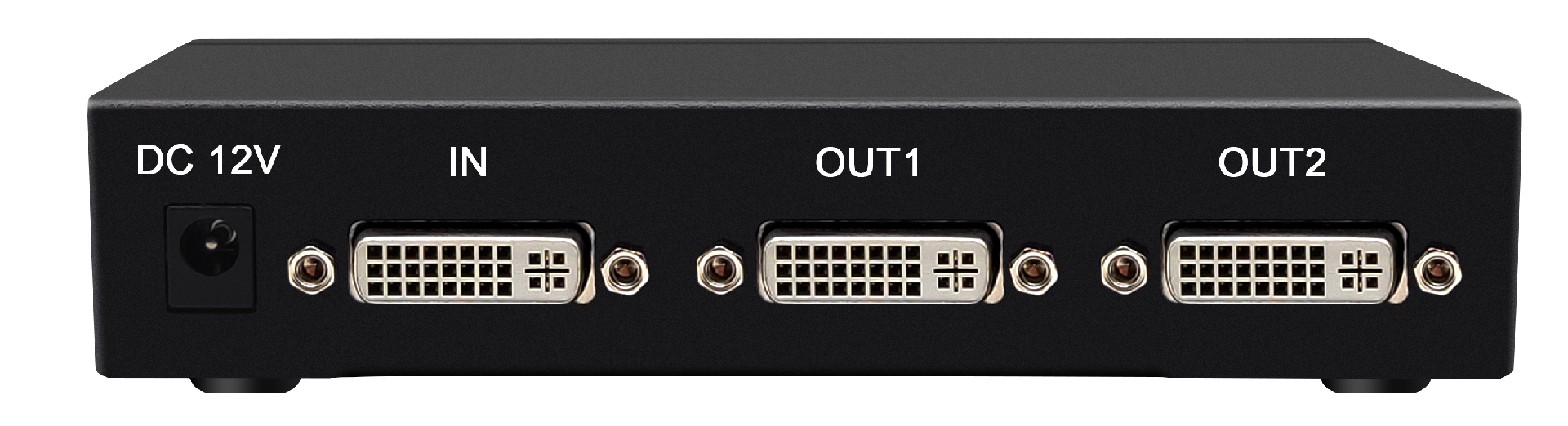

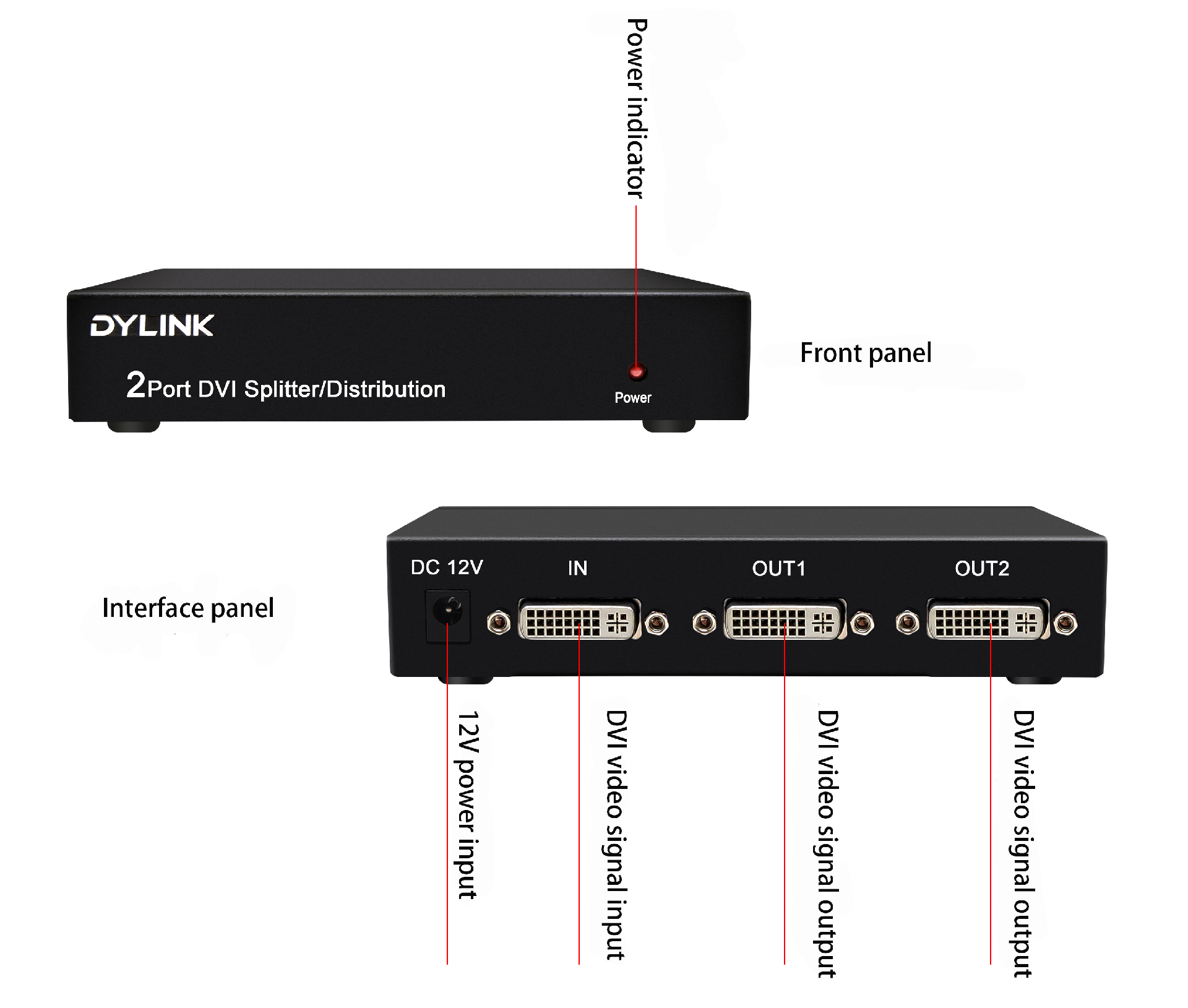

Interfacefunctions

Packing list

Thank you for using our products, please open the package is the first to clear the product packing list

Product Packing Details:

√ SP102D                                     One

√ The 12V / 1A power supply adapter           One

√ operating instruction                        a part

√ Warranty card certificate            One copy of each

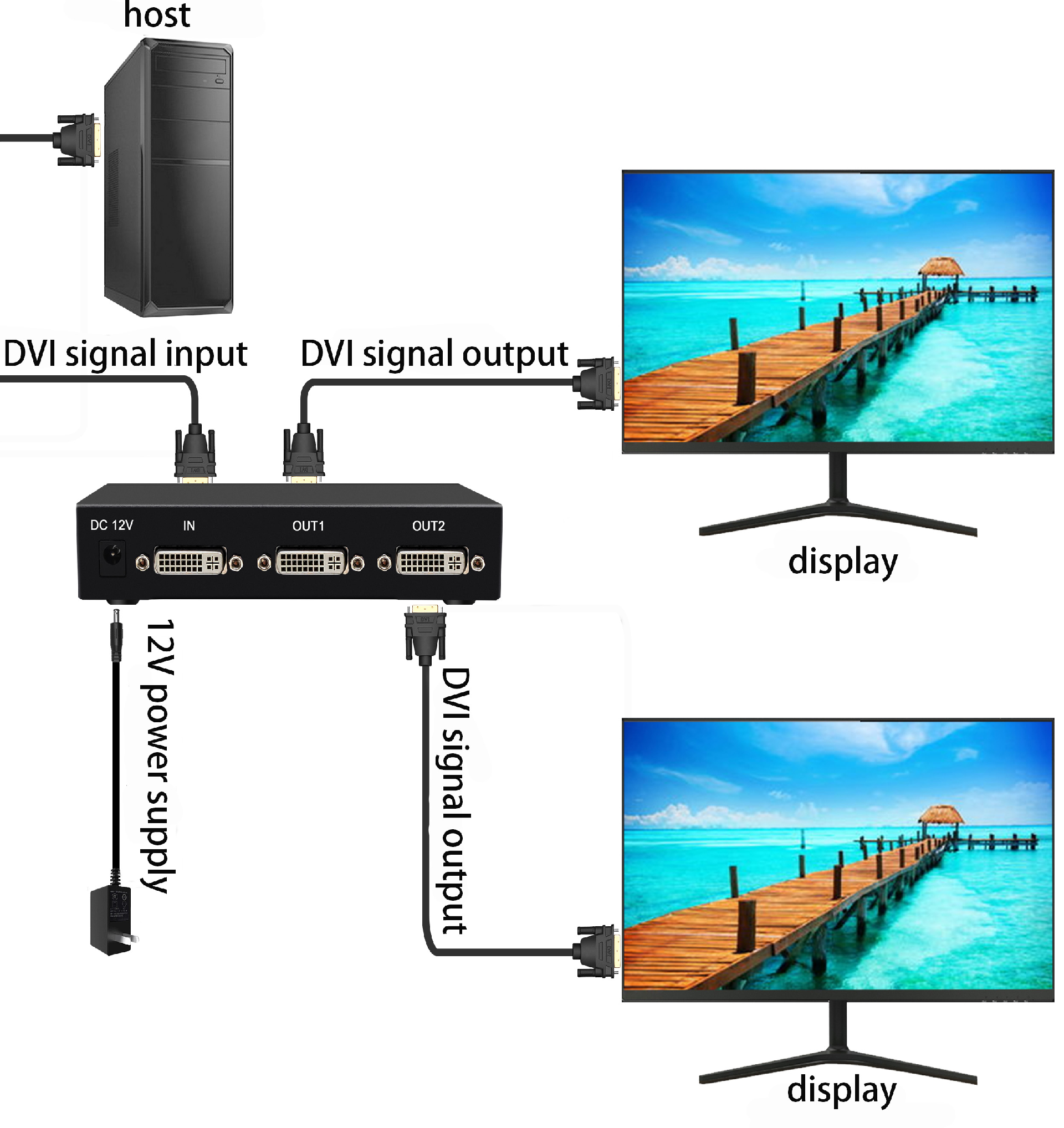

Schematic diagram of the product

pecifications
