Product Introduction

DY-SW1704AH-SIt is a high-reliability, low-power consumption, lightweight, domestically produced fully ruggedized portable computer. The device is milled and formed from magnesium alloy, featuring a lightweight, sturdy structure with fast heat dissipation. The inner surface of the structure undergoes conductive oxidation processing, while the electrical connectors use professional military-grade aviation plugs. The outer surface is treated with specialized anti-corrosion paint.

Product Features

l Custom design with dustproof, salt spray resistant, anti-vibration, and wide temperature range features

l The waterproof keyboard is made of industrial materials, allowing it to be lightweight and flexible while functioning properly in harsh environments.

l Standard 19-inch rackmount structure for use in vehicle, airborne, and shipboard platforms

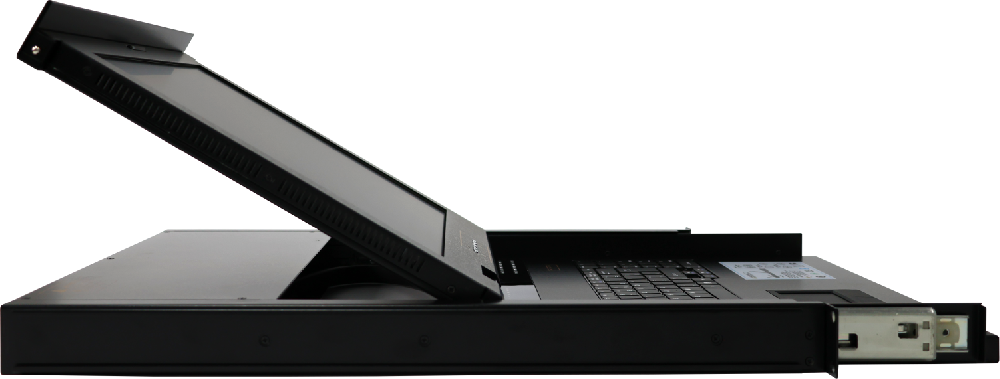

l Integrated 17.3" LED Screen / Keyboard / Mouse / Switcher All-in-One Machine

l LED LCD display adjustment function, rail with self-locking device

l Pull-out installation design, which can adjust the length to adapt to various cabinet spaces

l Support Microsoft IntelliMouse （Pro）， Optical, Mouse Man。

l Wheel Mouse，Scroll Point，Serial Mouse etc。

l When switching computers, the original keyboard working status is automatically recorded and stored.

l The hotkey (Hot-key) function provides more convenient management operations

l Auto-scan function, which can enable KVM to automatically scan computers one by one.。

l （Set up auto-scan through the OSD control function table for easier management.）

l Excellent video effect, with a maximum resolution of 1920*1080 60HZ

l Dual-interface PS/2/USB Keyboard and Mouse Switcher for Connecting and Controlling Computers

l Complete DDC2B function, can detect screen model without switching computers

l Multiple devices can be cascaded, and the 4 ports can connect 128 computers for unified operation

l Human-centric design, allowing one person to install and uninstall, thereby improving the efficiency of administrators

l Supports servers and industrial PCs from various brands in the server room, such as IBM、DELL、HP、SUN、Lenovo、advantech 、EVOC etc

l Compatible with operating system series such as Microsoft, Linux, and Unix

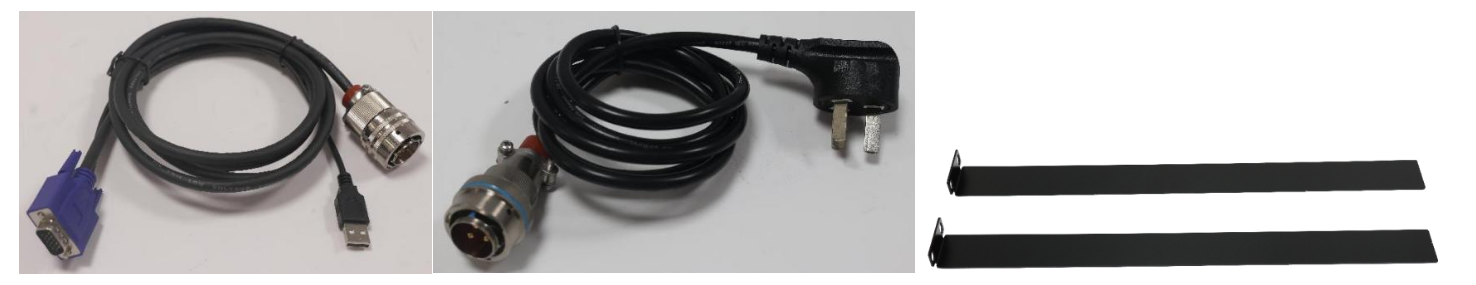

Product Accessories

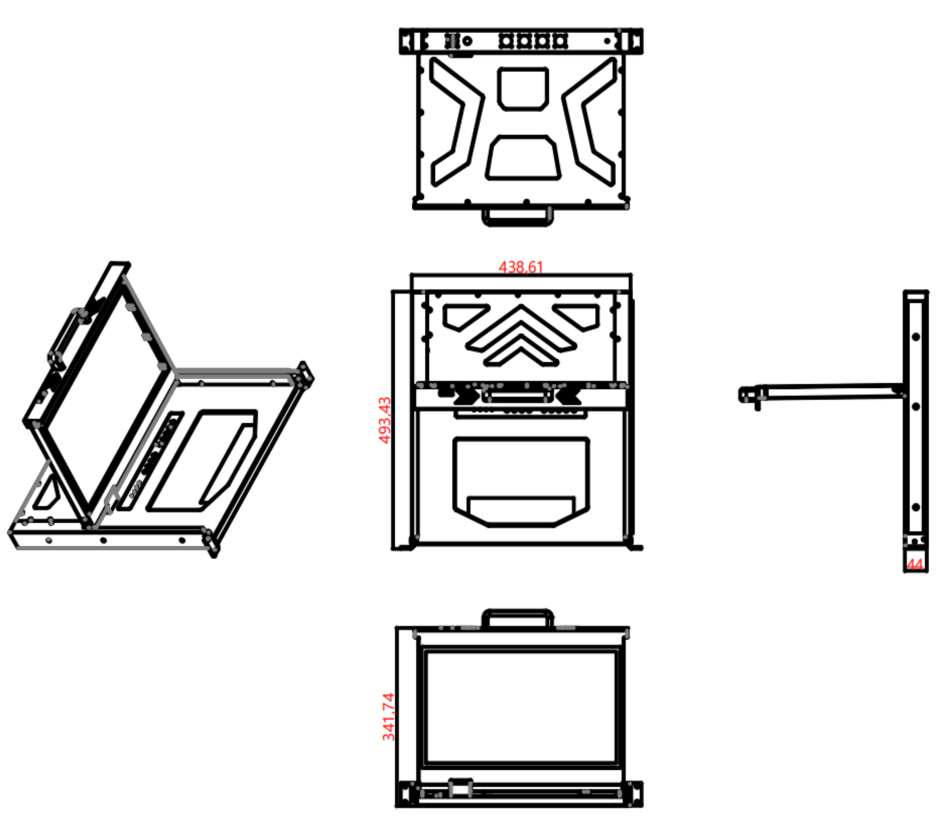

Product dimensions

Specification Parameters
