Product Introduction:

DY-SW1704AHThis rack-mounted 17.3-inch LCD KVM switch features 4 ports with high-definition video output, delivering crystal-clear images without distortion, snow, or ghosting. The device includes an additional local control port for external keyboard, mouse, and monitor connections. Its professional-grade design combines a robust, aesthetically pleasing structure with easy installation and user-friendly operation, making it an ideal choice for professional setups.

product features

l Integrated 17.3" LED Screen/Keyboard/Mouse/Switcher All-in-One Machine

l Adjustment Function of LED LCD Screen with Self-locking Device on Guide Rail

l The pull-out installation design allows length adjustment to fit various cabinet spaces.

l support Microsoft IntelliMouse （Pro）， Optical, Mouse Man。

l Wheel Mouse，Scroll Point，Serial Mouse equal。

l When you switch computers, the original keyboard state is automatically recorded and saved.

l The Hot-key feature provides more convenient management operations.

l The Auto-scan feature enables KVM to automatically scan each computer.

l （Configure auto-scan through the OSD control function table for easier management.）

l Excellent video quality, with a maximum resolution of 1920*1080 at 60Hz

l Dual interface PS/2/USB keyboard and mouse switcher for computer connection control

l Complete DDC2B functionality detects screen models without switching computers

l Multiple devices can be connected in series, with 4 ports supporting 128 computers for unified operation

l User-friendly design, one-person installation and removal, improving administrator efficiency

l Compatible with servers and industrial PCs from various brands in the data center, including IBM, DELL, HP, SUN, Lenovo, Advantech, and EVOC.

l Compatible with Microsoft, Linux, Unix, and other operating systems

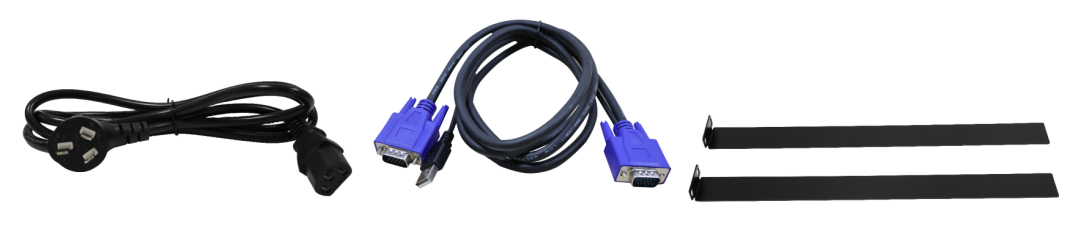

Product Accessories

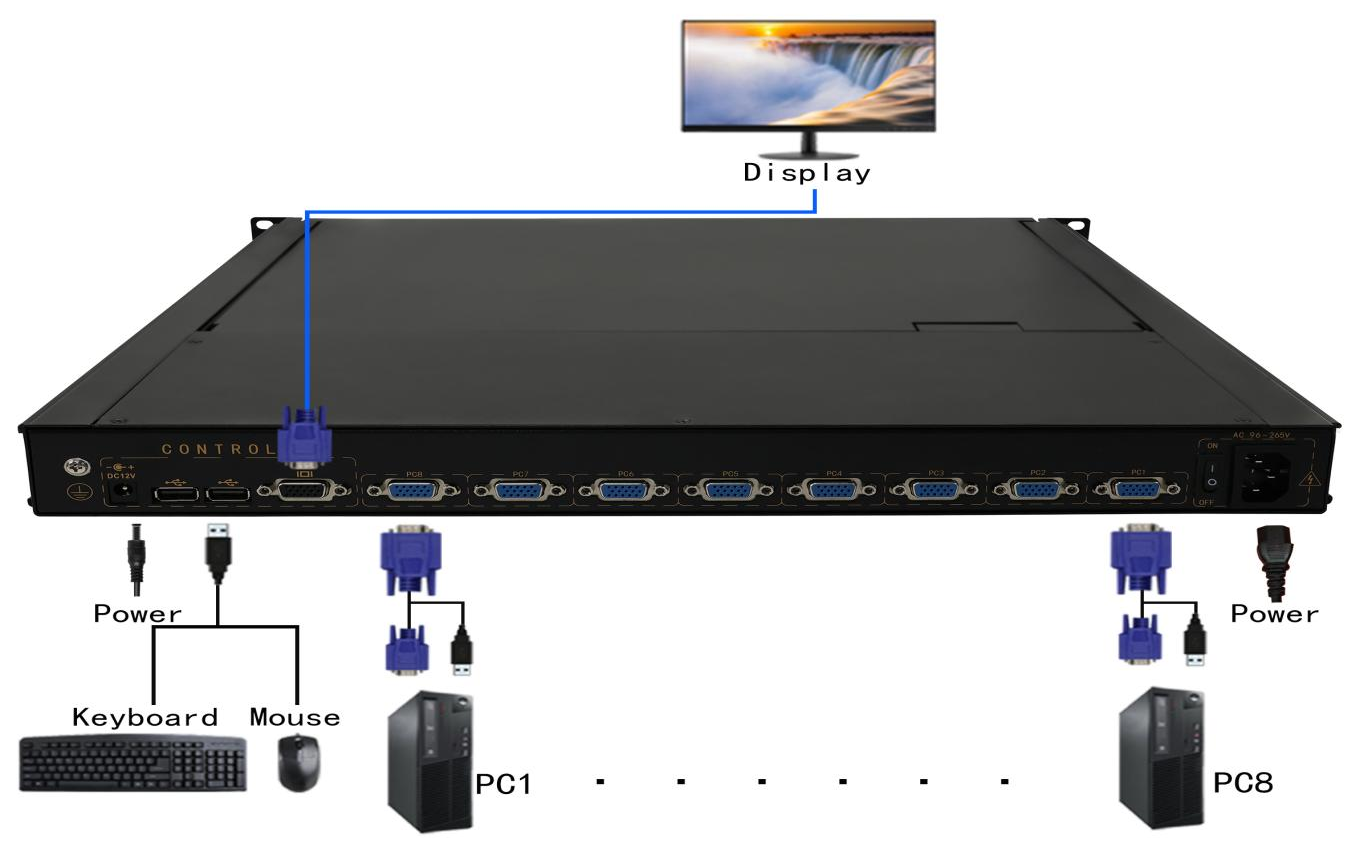

Product Connection Schematic Diagram

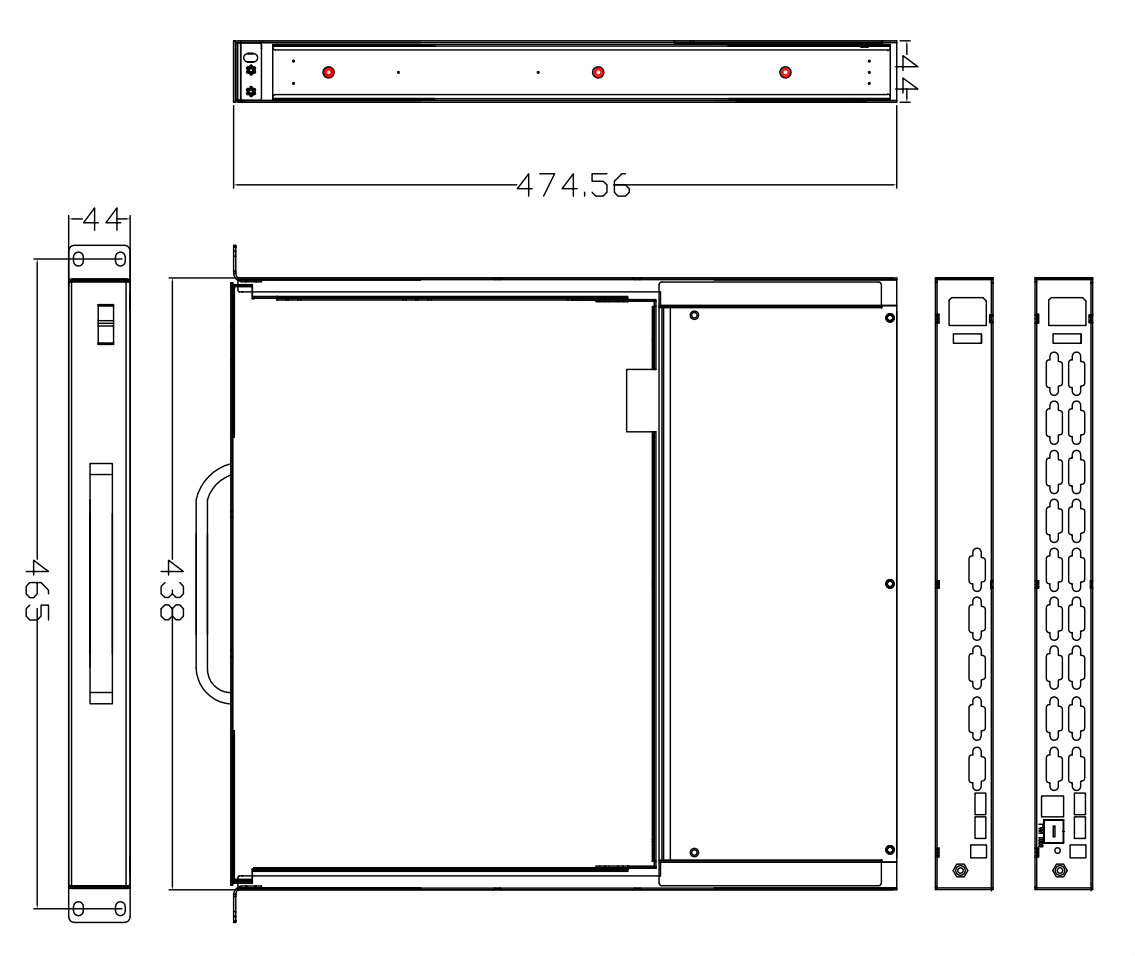

product size

Specifications
