Product Introduction:

DY-SW1701AHThis rack-mounted 17.3-inch LCD KVM switch features a single port with high-definition video output that delivers distortion-free, snow-free, and ghost-free images. It includes a front USB port for keyboard or mouse connection. The device is designed for easy installation and user-friendly operation, combining a sleek, robust build with professional-grade reliability.

Product Features

l 17.3-inch LED Screen, Keyboard and Mouse All-in-One

l Built-in 8Ω 2W stereo dual speakers

l LED LCD display adjustment function, rail with self-locking device

l The pull-out installation design allows length adjustment to fit various cabinet spaces.

l User-friendly design, one-person installation and removal, improving administrator efficiency

l Excellent video quality, with a maximum resolution of 1920*1080 at 60Hz

l USB keyboard and mouse switcher connects to control computer

l The front USB port supports portable storage and both wireless and wired mice.

l Supports servers and industrial control computers of various brands applicable to the data center: such as IBM, DELL, HP, SUN, Lenovo, Advantech, PONTRON, EVOC, etc.

l Compatible with operating system series such as Microsoft, Linux, and Unix

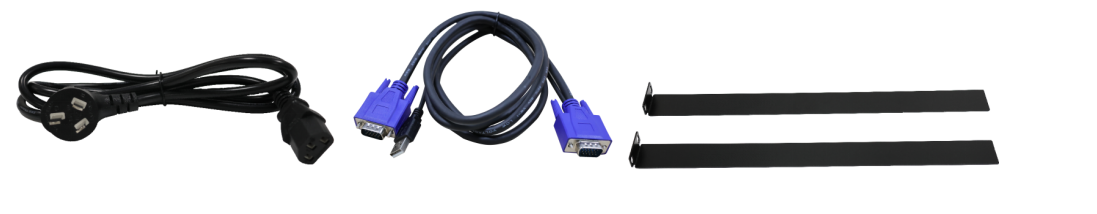

Product Accessories

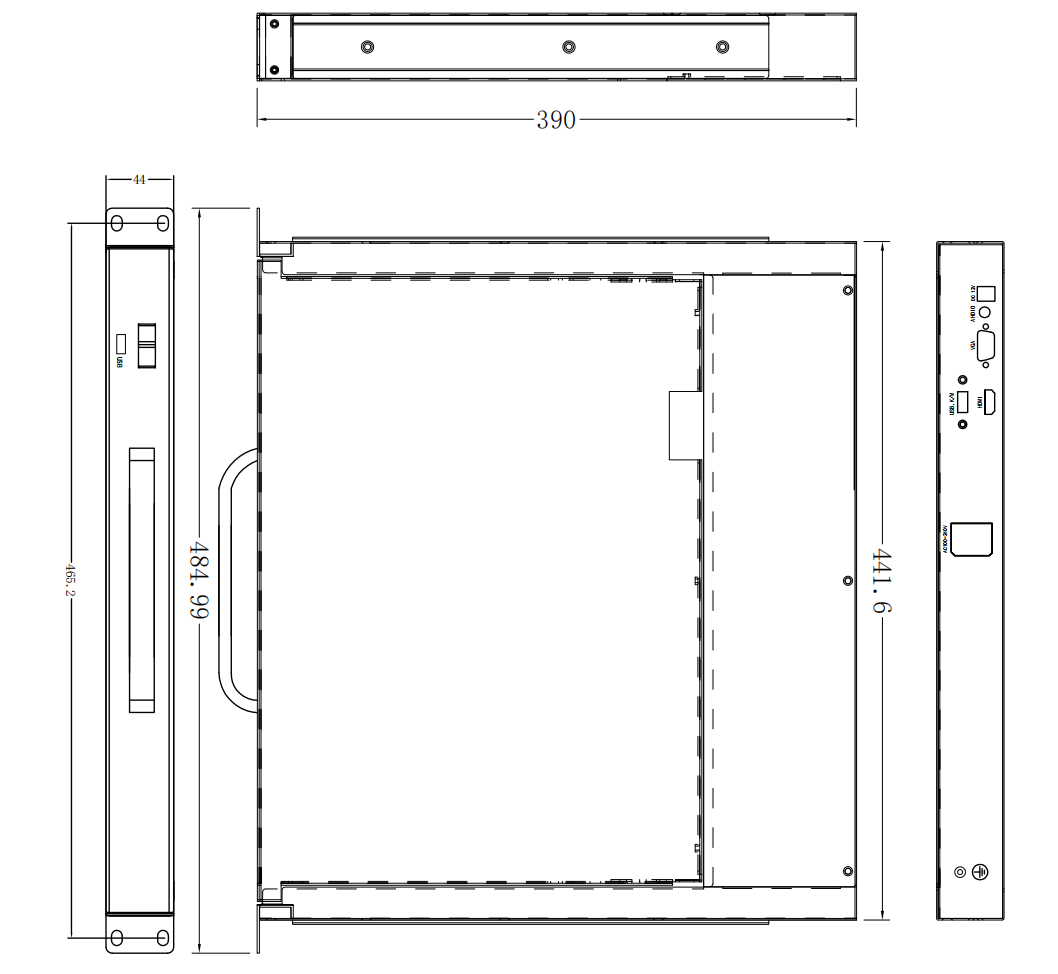

product size

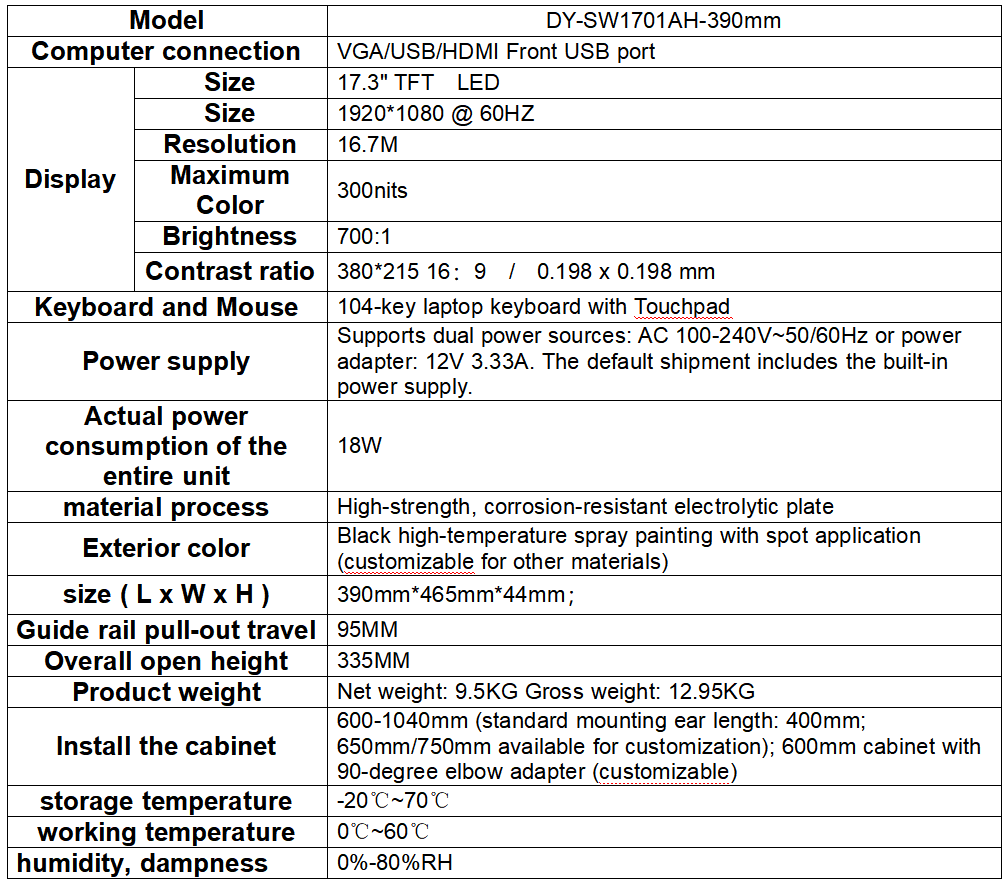

Specification Parameters
