Product Overview:

The SP240 is a high-performance, stable, and high-definition VGA video distributor that can split a single high-resolution VGA signal to two display terminals or devices, delivering high-quality images without ghosting or trailing. This product supports multi-level cascading. It is widely used in data control centers, exhibition venues, educational environments, and training centers where VGA signal distribution is required.

In practical applications, the SP240 operates independently with outstanding performance: 400MHz ultra-wide bandwidth, high speed, high precision, high output current, low noise, and low power consumption. It supports up to 2048*1536 physical resolution and DDC2 standard, compatible with 9-12V wide-range DC input.

Product images

Product Features

l Processing capability: With 400MHz ultra-wide bandwidth, high speed, high precision, high output current, low noise, low power consumption and good performance

l Drive capability: Excellent drive capability, drive distance up to 65 meters;

l Compatibility: Supports VGA, SVGA, XGA, SXGA, WXGA, UXGA, QXGA, and other formats.

l Features: Supports up to 2048x1536 physical resolution, enables 1-5 stage cascading, and complies with DDC2 standard.

l Environment compatibility: Excellent protection circuit, support hot plug;

l Power supply: Compatible with 9-12V wide voltage DC input.

l Default DDC resolution：640x480,720x400,800x600,832x624,1024x768,1152x864,,1280x960,1280x1024,1360X768,1440x900,1440x1440,1920x1080

l Metal casing with good shielding effect and enhanced anti-interference capability

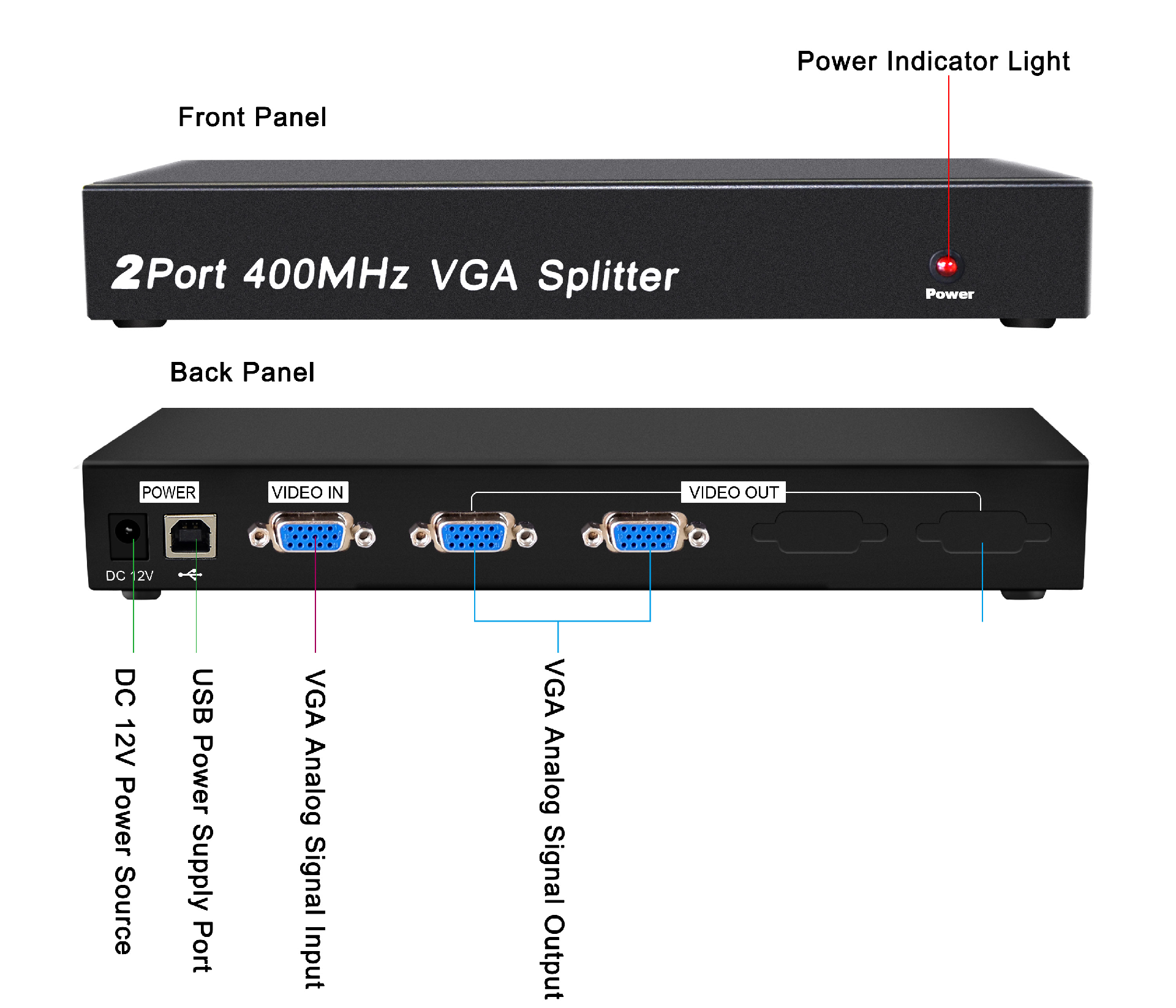

Interface Diagram

container loading list

Thank you for using our products. Please open the packaging and first check the product packing list.

Product packing list：

√ SP240              one

√ DC12V/A power adapter    one

√ operating instruction                     a part

√ Warranty card certificate        One copy each

Product Parameter
