Overview:

The 4K KVM over IP HD video encoder is a KVM video signal extender primarily based on IP technology, connected via network cables. It utilizes professional over IP KVM functionality, enabling remote access to the computer system through a USB control transmitter via the internal network.

Dual-channel HDMI KVMM HD Video Encoder

1. A network 4K video KVM extender with an iron casing, integrating dual HDMI video signals, USB keyboard/mouse control signals, USB2.0HUB functionality (USB devices including flash drives, USB keys, printers, external hard drives, and touchscreens), RS232 interface signals, bidirectional audio signals, and RJ45 network port.

2. Using gigabit digital encoding technology, the video signal and control signal from the local sending end of the device are connected to the computer host through the network cable (can transmit 150 meters, stable 4K30hz) to the receiving end of the extender. The user can use the computer at the receiving end.

3.Supports 4K x 2K resolution (up to 3840 x 2160) for exceptional visual display. It delivers high-quality video with ultra-low latency. Widely applicable in education, banking, healthcare, and confidential office environments.

Features

l The gigabit digital encoding technology provides clear, smooth images with minimal delay

l Independent bidirectional audio transmission;

l HDMI Digital Audio and HDMI Audio Separation

l USB 2.0 hub capability (supporting USB devices including flash drives, printers, wireless peripherals, and touchscreens);

l The RJ45 network port supports transmission over 150 meters.

l Hot-swappable design, plug and play;

l Supports 3840 x 2160@30Hz and backward compatibility with various standard resolutions;

l Featuring four powerful USB ports, it supports high-capacity USB devices.

l You can connect through a switch or directly

l Compatible with different video signal interfaces..

Package Includes

Interface Diagram

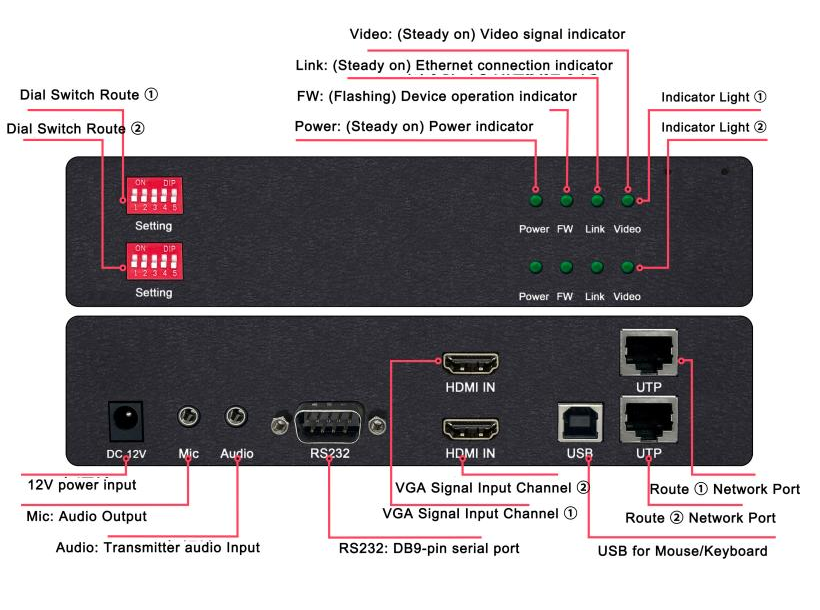

lSender End

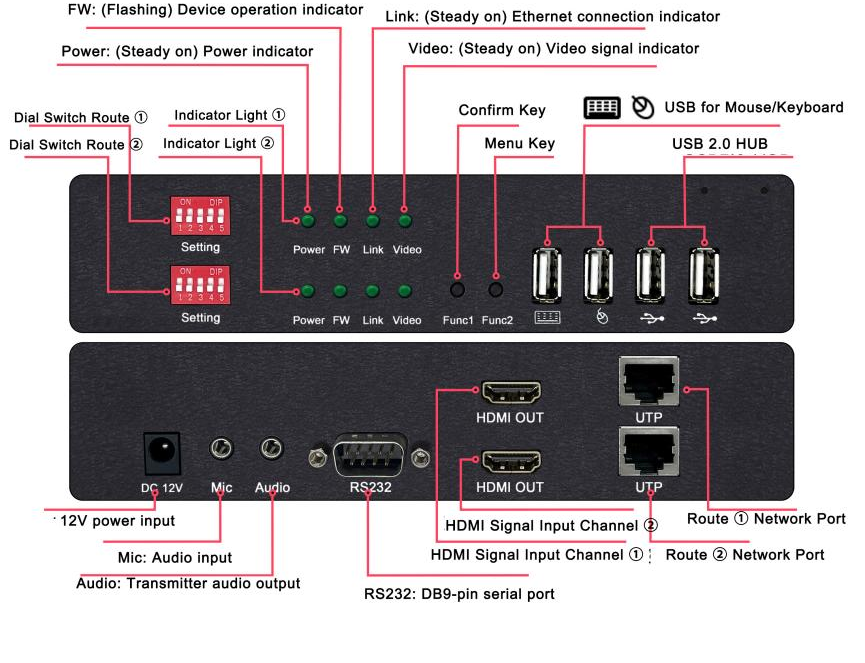

lReceiver End

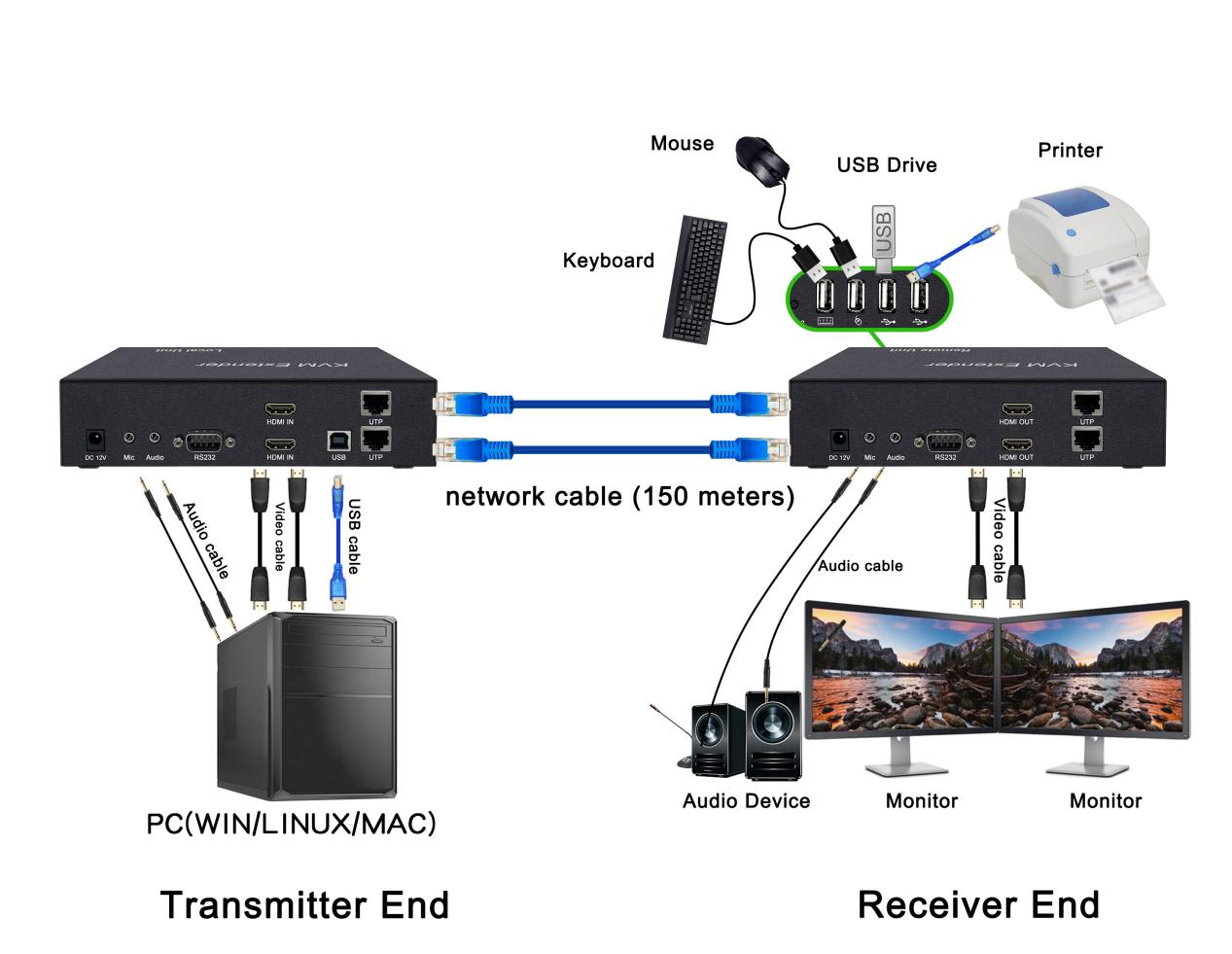

attended operation

1. First, verify that the dial codes on both the sender and receiver match.

2. The transmitter connects to the controlled host via standard video cables, USB cables, and audio cables.

3. The receiver connects to monitors, audio devices, USB keyboards, mice, and other USB peripherals.

4. The sender and receiver are connected by a network cable;

5. Turn on the power supply of the transmitter and receiver;

6. The sender and receiver display the connection status through indicator lights;

7. Supports hot-swapping, allowing you to add or remove controlled devices at any time without shutting down the KVM power.

8. Cross-platform support for mainstream operating systems including Windows, Linux, and Sun.

Note: Change the dial code and power off the device to restart it.
