product description

KVM multi-computer switcher；

1. This system enables users to swiftly switch between 4, 8, or 16 computer hosts using a single USB keyboard, mouse, and VGA video interface, allowing efficient multitasking.

2. Video resolution-up to 1920 x 1440. Users can enjoy a wider screen display and provide the best working experience.

3. The KVM switch supports seamless switching between 4, 8, or 16 computers, featuring dual USB ports for rapid keyboard and mouse data transfer via KVM cables. It also offers PS2 keyboard and mouse support for simultaneous operation.

4. The device is easy to install and use, simply plug the cable into the corresponding port. No software configuration is required, and there are no compatibility issues. It works on multiple operating systems including Windows, Linux, and Mac.

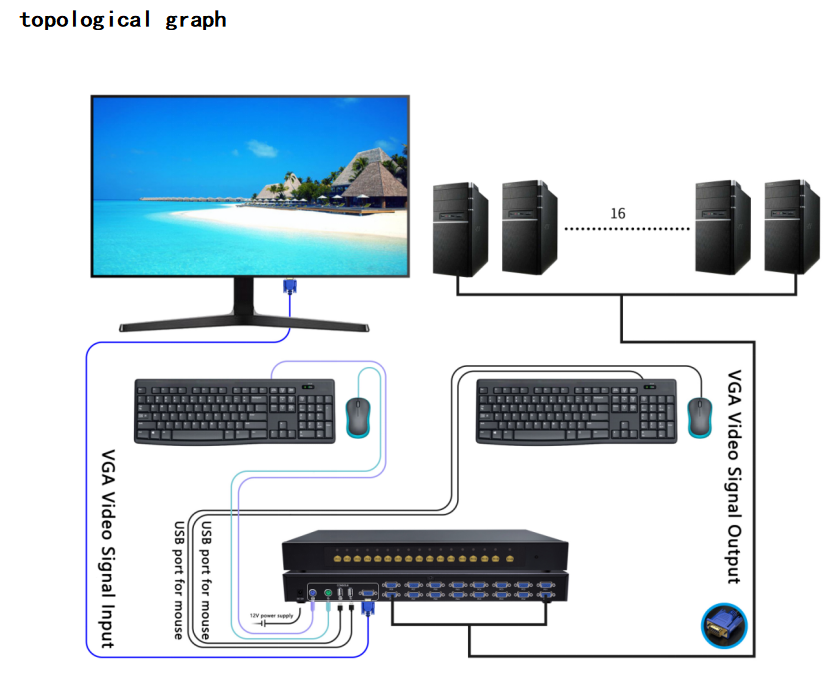

Product connection requirements

1. PC version: 16 KVMUSB cables

2. User interface: a monitor with VGA port; a USB keyboard and mouse; a PS2 keyboard and mouse.

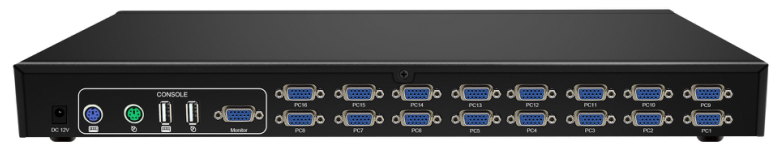

product picture

Product Features

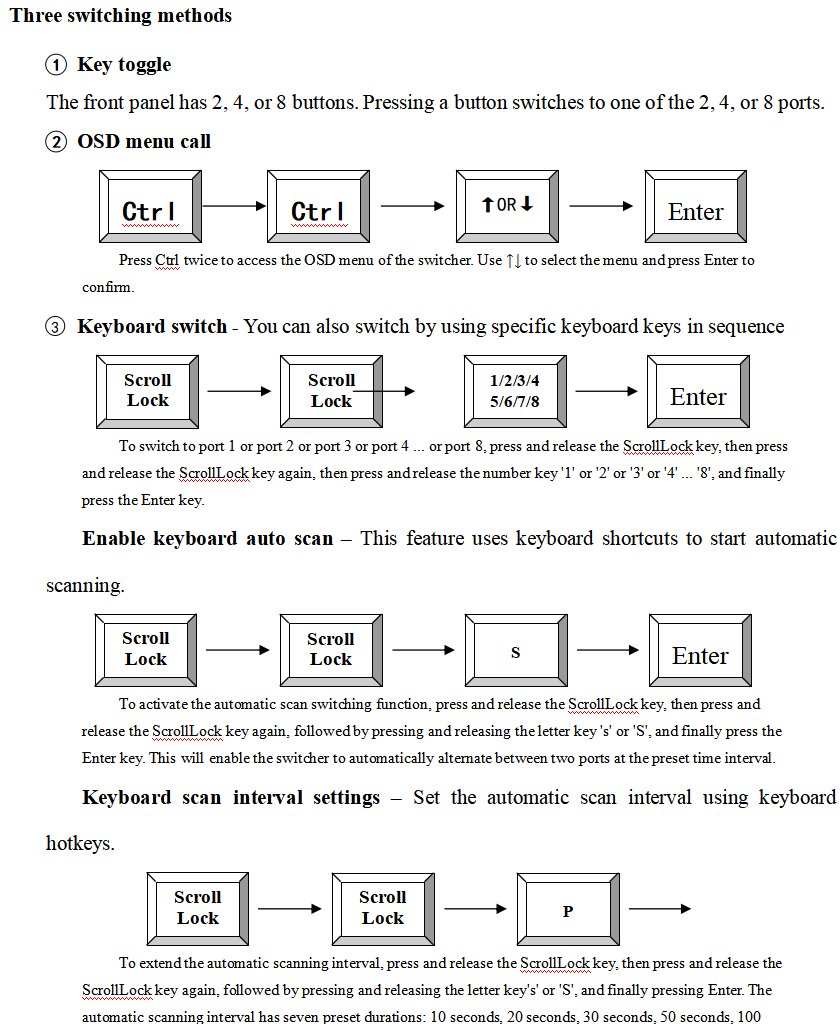

l Provide three switching methods: front panel buttons, keyboard hotkeys, and OSD menu

l Provide multiple automatic scanning modes and scanning times;

l Hot-swapping-Add or remove connected computers without powering them off;

l Supports control of 4, 8, or 16 computers through a USB keyboard and mouse, or PS2 keyboard, mouse, and monitor.

l Supports cascading-manage more computers

l High video resolution-up to 1920 × 1440

container loading list

Thank you for using our products. Before opening the packaging, please check the product packing list.

Product packing list：

√SW21601R                       one

√KVMUSB cable              16 items

√hangers                       a couple

√12V/1APower adapter              one

√ operating instruction                  a part,

√ Warranty card certificate               One copy each

install

1) Turn off the switch, VGA monitor, and all hosts

2) Insert the USB keyboard and USB mouse into the ports labeled as keyboard and mouse on the switch.

3) Insert the VGA monitor into the switch port labeled "Monitor" and turn on the monitor power.

4) Use a KVMUSB cable to connect the switcher's VGA port to the host's VGA port.

5) Connect the switcher's USB port to the host's USB port using a USB cable

6) Power on the switch.

7) Turn on all computer power and start

Product Parameter
