product description

KVM Multi-Computer Switcher；

1. This system enables users to swiftly switch between 4, 8, or 16 computer hosts using a single PS keyboard, mouse, and VGA video interface, allowing efficient multitasking.

2. Video resolution-up to 1920 × 1440. Users can enjoy a wider screen display and provide you with the best working experience.

3. The KVM switch supports seamless switching between 4, 8, or 16 computers, featuring dual PS2 ports for PS keyboard and mouse data transmission via KVM cables.

4. The device is easy to install and use, requiring only cable insertion into its designated ports. No software configuration is needed, and compatibility issues are eliminated. It works seamlessly across multiple operating systems including Windows, Linux, and Mac.；

Product connection requirements

1. PC: 4 KVM PS2 cables，

2. User interface: a monitor with a VGA port, a PS2 keyboard, and a PS2 mouse

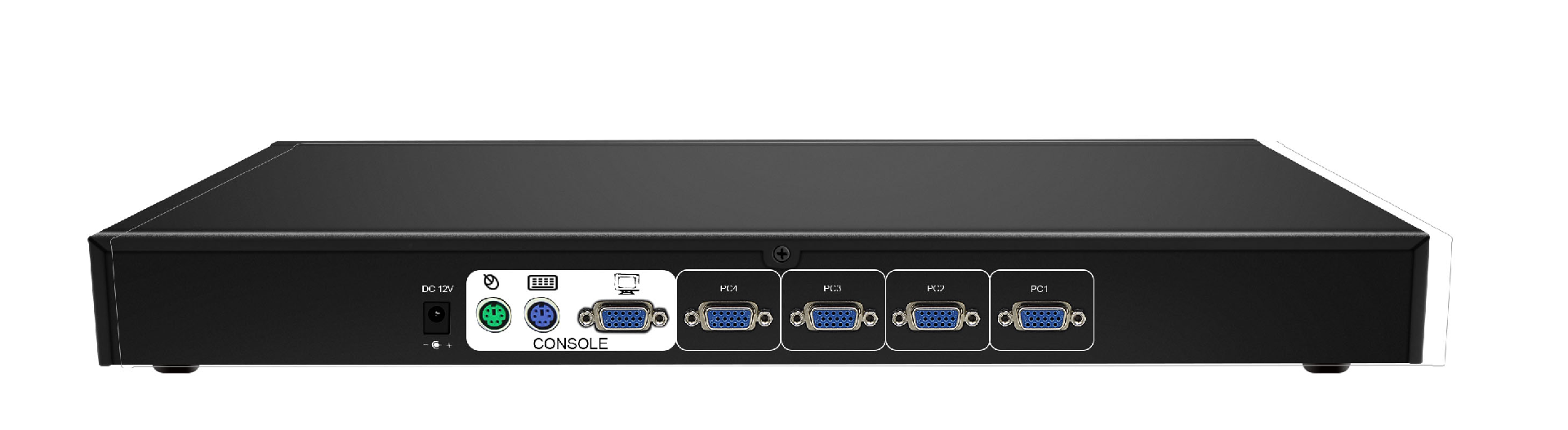

product picture

Product Features

l Supports three switching modes: front panel buttons, keyboard shortcuts, and OSD menu.

l Provide multiple automatic scanning modes and scanning times;

l Hot-swapping-Add or remove connected computers without powering them off；

l Supports 4, 8, or 16 computers through a USB keyboard and mouse, or PS2 keyboard, mouse, and display control terminal.

l Supports cascading-manage more computers

l High video resolution-up to 1920 × 1440

switching mode

There are two ways to switch: ① Switch through the buttons on the front panel. ② Switch using the keyboard hotkeys.

① Button toggle

The front panel has four buttons, and pressing one of them switches to the corresponding port.

② Keyboard switch - You can also switch using specific keyboard sequences.：

To switch to the corresponding port (1, 2, 3, or 4), press and release the ScrollLock key, press and release the ScrollLock key again, press and release the numeric keys "1", "2", "3", or "4", and finally press Enter.

Keyboard starts auto-scan – The automatic scanning feature can be activated using keyboard shortcuts. The specific steps are as follows:

To activate the automatic scanning switch, press and release the ScrollLock key, then press and release the ScrollLock key again, press and release the letter key 'S', and finally press and release the Enter key. The switcher will then automatically toggle between the two ports at the preset time intervals.

Keyboard scan interval settings – Set the automatic scanning interval using keyboard shortcuts. The specific settings are:

To adjust the automatic scanning interval, press and release the ScrollLock key, then press and release the ScrollLock key again, press and release the letter key "P" or "d", and finally press Enter. The interval can be increased or decreased. The automatic scanning interval has 7 preset values: 10 seconds, 20 seconds, 30 seconds, 50 seconds, 100 seconds, 200 seconds, and 5 seconds. The default interval is 10 seconds.

Connect operation method

1) Insert the USB keyboard and USB mouse into the ports labeled as keyboard and mouse on the switch.

2) Insert the VGA monitor into the switch port labeled "Monitor" and turn on the monitor power.

3) Use a KVMUSB cable to connect the VGA port on the switcher to the host's VGA port.

4) Connect the switcher's USB port to the host's USB port using a USB cable

5) Power on the switch.

6) Turn on all computer power and start.

Product Parameter
