Product Overview

The 4K KVM over IP HD video encoder is a KVM video signal extender primarily based on IP technology, connected via network cables. It utilizes professional over IP KVM functionality, enabling remote access to the computer system through a USB control transmitter via the internal network.

4K HDMI KVMMIKVM High-Definition Video Network Cable Extender

1. A network ultra HD video KVM extender that integrates HDMI video signals, USB keyboard and mouse control signals, USB2.0HUB functionality (including USB devices like USB drives, UKEYs, printers, and touchscreens), RS232 interface signals, bidirectional audio signals, RJ45 network ports, and features a rugged metal casing.；

2. The Gigabit Digital Encoding Technology enables the local transmitter of the device to connect the HDMI video signal and USB control signal of the computer host through the network cable to the receiver of the extender, which can be extended up to 150 meters. The user can operate the computer at the receiver, and the local end has HDMI video signal output.。

3. Supports 4K x 2K resolution (up to 3840 x 2160) for exceptional visual display. Ensures high-quality video with ultra-low latency. Ideal for education, banking, healthcare, and confidential office environments.。

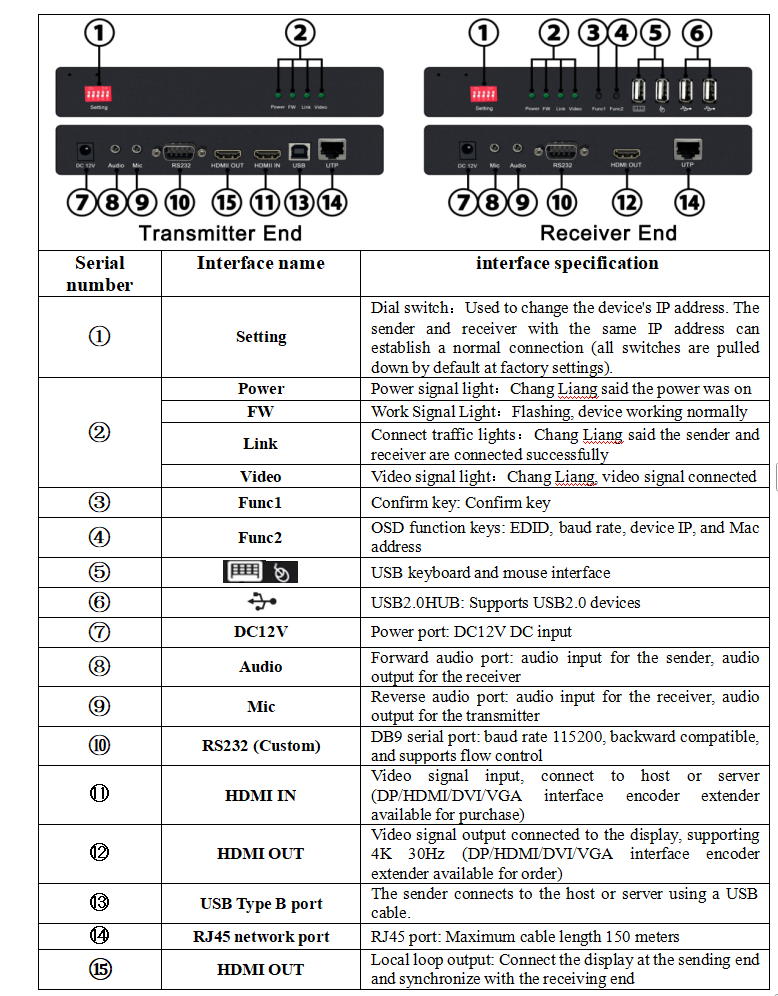

Interface Diagram

Functional Features

l Adopts Gigabit digital encoding technology, delivering clear, smooth images with low latency;

l  Independent two-way audio transmission;

l Supports HDMI digital audio separation；

l USB 2.0 HUB function (compatible with USB devices such as U disks, printers, wireless keyboards/mice, touch screens, etc.);

l Signal transmission via RJ45 network port, extendable up to 150 meters;

l Hot-swappable design, plug-and-play;

l Supports 3840 x 2160@30Hz and is backward compatible with multiple conventional resolutions;

l Powerful design with 4 USB ports, meeting the usage needs of high-capacity USB devices;

l Compatible with switch connection or direct connection

l  Mixable and matchable: Transmitters can connect to receivers with different video signal interfaces.

Product features and options

Assembly List

Thank you for using our products. Before opening the packaging, please check the product packing list.

Product packing list:

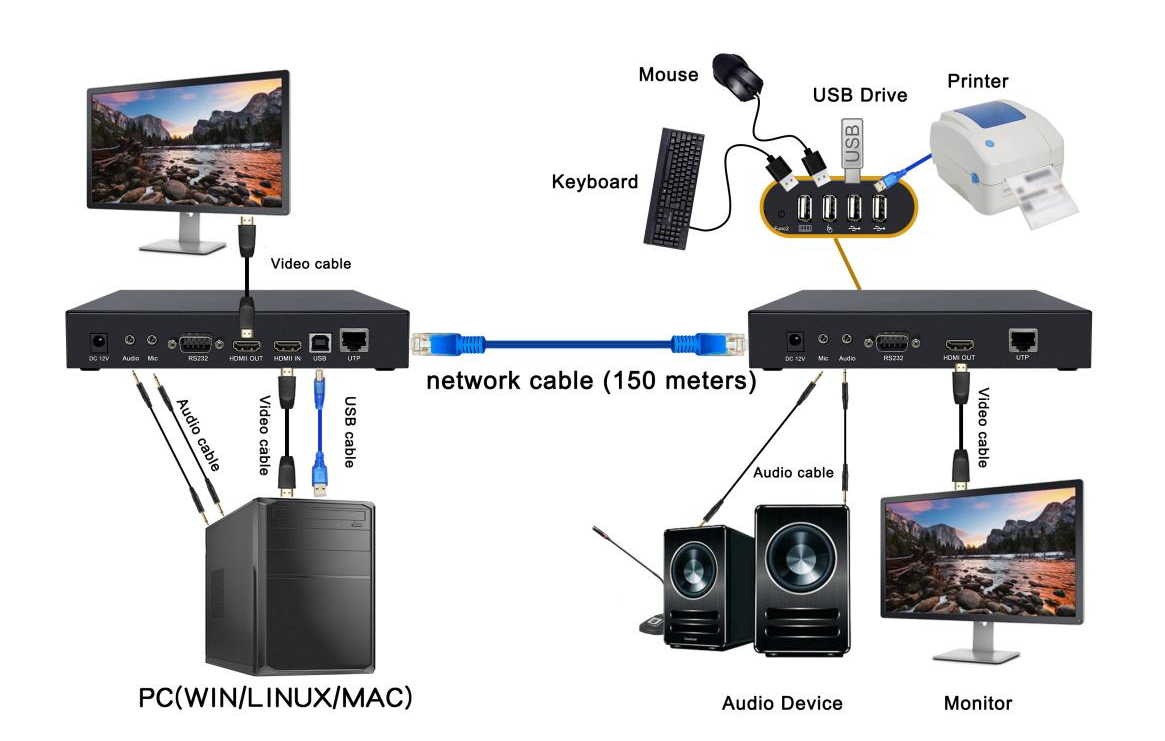

attended operation

1. First, verify that the dial code switch encoding on both the sending and receiving ends matches.

2. The sender uses standard video, USB, or audio cables to connect to the controlled host.

3. The receiver connects to monitors, audio devices, USB keyboards/mice, and other USB peripherals.

4. The sender and receiver are connected by a network cable;

5. Turn on the power supply of the transmitter and receiver;

6. The sender and receiver display the connection status through indicator lights;；

7. Supports hot-swapping, allowing you to add or remove controlled devices at any time without shutting down the KVM power；

8. Cross-platform support for mainstream operating systems including Windows, Linux, and Sun.

Note: Change the dial code and power off the device to restart it.
