Product Description:

DisplayPort 1-in-4-out Hybrid Video Splitter (also known as Video Converter / Video Dock)

1.This DP 1-in-4-out hybrid video splitter distributes 1 DisplayPort input signal into 4 video outputs, including:2× DP outputs (4K@60Hz),1× HDMI output (4K@60Hz),1× VGA output (1080P)

2.Supports Two Modes:SST (Single Stream Transport): Clone mode (all 4 displays show identical content).MST (Multi Stream Transport): Extended mode (4 displays show different content).

3.Plug-and-Play Installation – Simply connect the cables to the corresponding ports. No software setup required, ensuring zero compatibility issues. Works seamlessly across Windows, Linux, and Mac operating systems.

Product connectivity needs：

1. Computer PC: 1 DP cable

2. User terminal: up to 4 displays (two DP interfaces, one HDMI interface, one VGA interface);

Productpictures：

Feature

l  Input interface: DP 1.4 standard; (supports 8K and is compatible with Type C)

l Supports 1 DP video signal input and 4 simultaneous signal outputs:

l Supports 2-channel DP video signal output with a resolution up to 4K@60Hz;

l Supports 1 HDMI video signal output, with a resolution up to 4K@60

l Supports 1 VGA video signal output with a resolution up to 1080P;

l Supports copy mode (four screens displaying the same content) and extended mode (four screens displaying different content);

l Apple Mac OS only supports mirroring display. It is recommended to use Windows 10 or later systems.

l Supports multi-resolution output, allowing different monitors to be configured with their respective optimal resolutions.

l Plug-and-play, no need to install any software

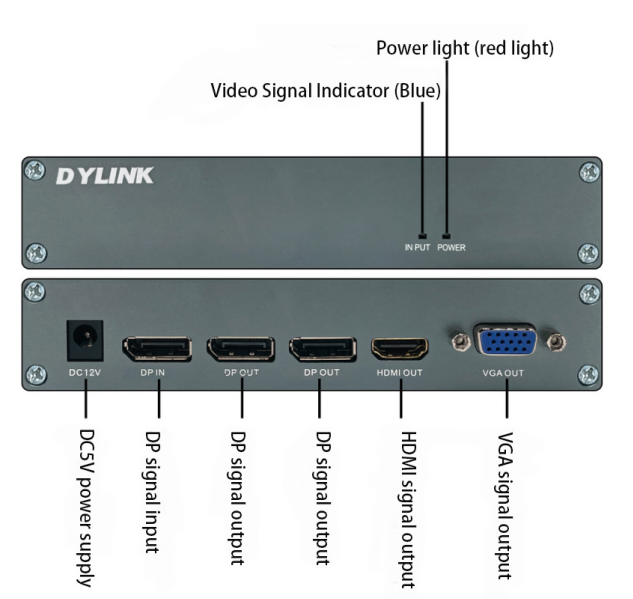

Interfacefunctions

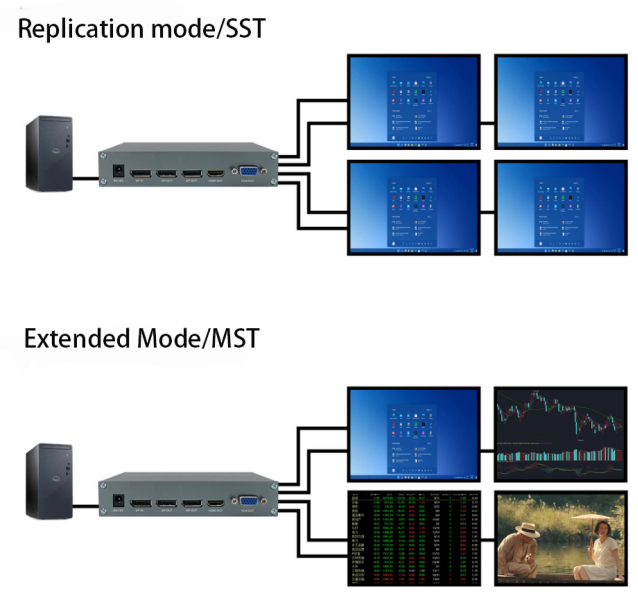

Topologydiagram

Packing list

Thank you for using our products, please open the package is the first to clear the product packing list

Product packing list：

Specification Parameters
