Product Overview :

The 4K KVM over IP fiber optic network cable integrated encoder is a KVM video signal extender primarily based on IP technology, connected via fiber optic cables. Featuring professional over IP KVM functionality, it enables remote access to the computer system through the internal network from the USB control terminal.

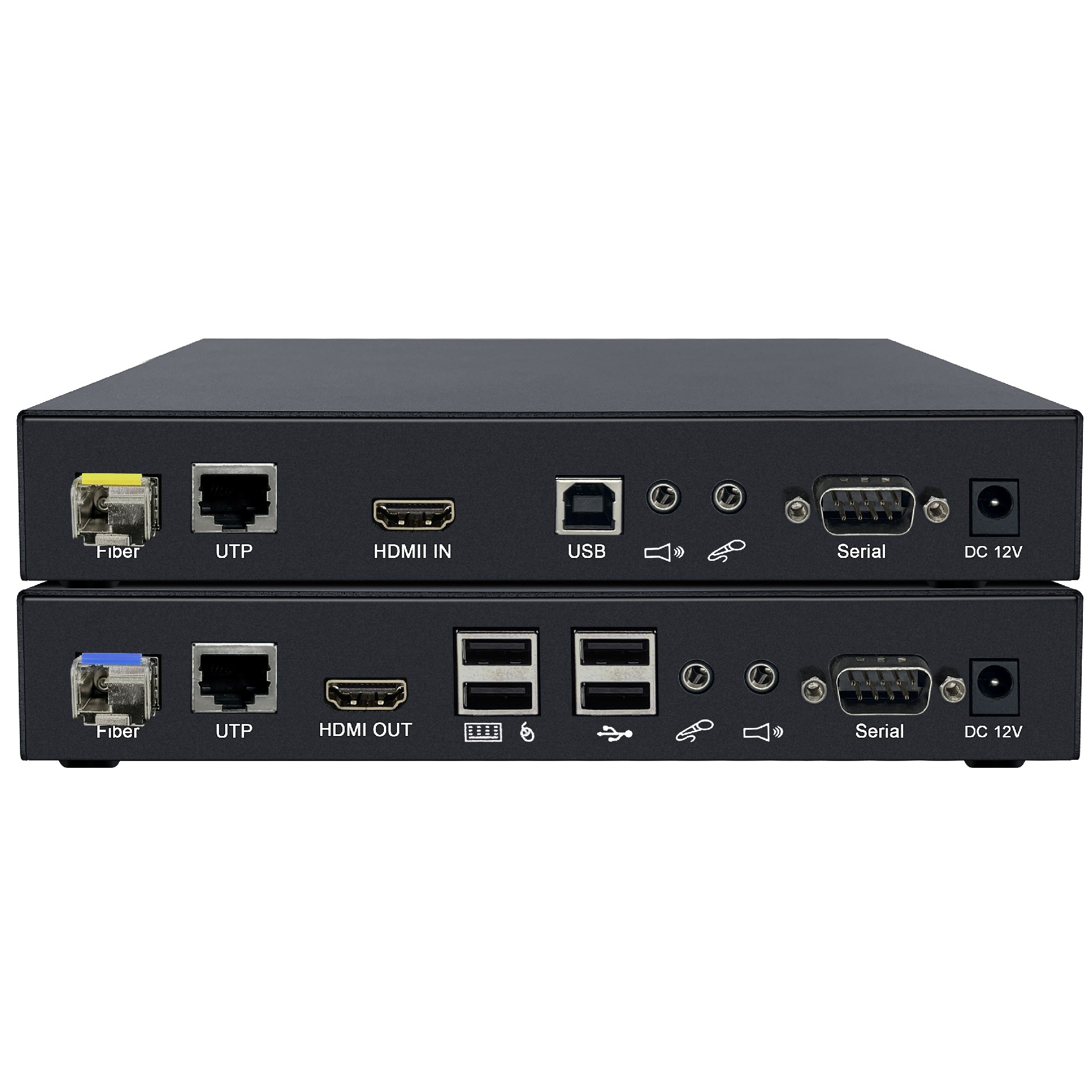

4KHDMIKVM Fiber Extender

1. An all-in-one network ultra HD video KVM extender that integrates DP video signals, USB keyboard/mouse control signals, USB2.0HUB functionality (including USB devices like USB drives, UKEYs, printers, and touchscreens), RS232 interface signals, bidirectional audio signals, SFP optical ports, and features a rugged metal casing.

2. Using gigabit digital encoding technology, the local sending end of the device is connected to the HDMI video signal and USB control signal of the computer host, and then connected to the receiving end of the extender through optical fiber. The extension can be up to 20km, and the user can use the computer at the receiving end.。

3. Supports 4K x 2K resolution (up to 3840 x 2160@60Hz) for exceptional visual performance. It delivers high-quality video with ultra-low latency, making it ideal for education, banking, healthcare, and confidential office environments.

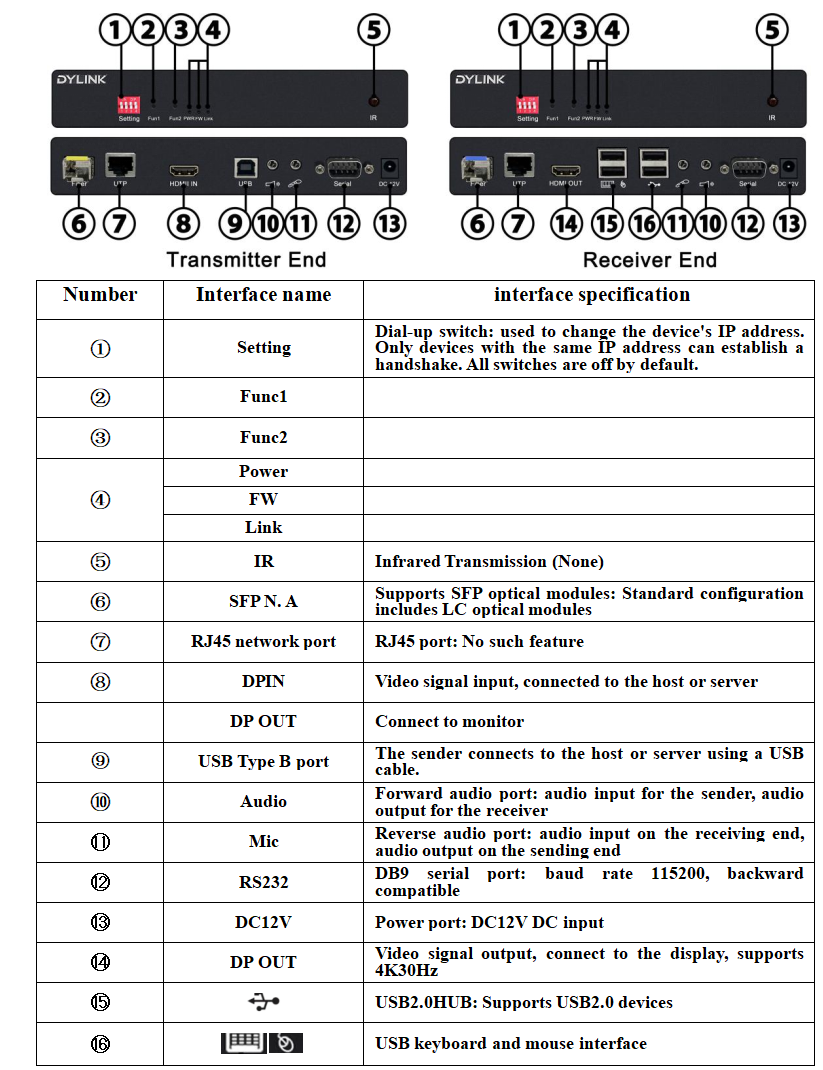

Interface Diagram

functional characteristics

l Adopts gigabit digital encoding technology for clear, smooth images with low latency;

l Low latency

l Independent bidirectional audio transmission;；

l DP digital audio and HDMI audio separation

l USB 2.0 hub capability (supporting USB devices including flash drives, printers, wireless peripherals, and touchscreens);

l The transmission distance can be extended by 20KM through optical modules.

l DP2.1 interface

l Supports 3840 x 2160@60Hz, YUV444, and backward compatibility with various standard resolutions.

l Dolby Vision、HDR10、HDR10+

l LPCM up to 12 channels, Dolby Digital Enhancement, Dolby TrueHD, DTS HD Main Audio, Dolby Atmos

l The device boasts four powerful USB ports, designed to meet the demands of high-capacity USB devices.；

l IP cascading allows you to ignore distance

l Hot-swappable design, plug and play;

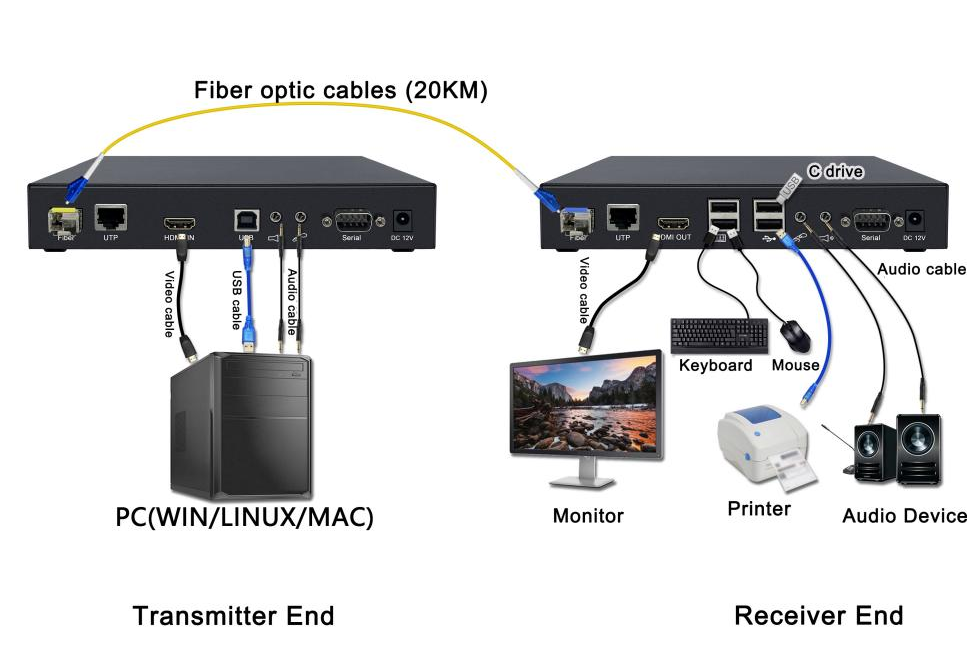

attended operation

1. First, verify that the dial codes on both the sender and receiver match.

2. The transmitter connects to the controlled host via standard video cables, USB cables, and audio cables.

3. The receiver connects to monitors, audio devices, USB keyboards, mice, and other USB peripherals.

4. The transmitter and receiver are connected via network cable or fiber optic (with optional switch).

5. Turn on the power supply of the transmitter and receiver;

6. The sender and receiver display the connection status through indicator lights;

7. Supports hot swapping, allowing controlled devices to be added or removed at any time without needing to power off via KVM.

8. Cross-platform support for mainstream operating systems including Windows, Linux, and Sun.。

Note: After changing the DIP switch settings, the device needs to be powered off and restarted.
