Product Overview

4K KVM over IP Fiber Optic Cable Integrated Encoder Extender is a KVM video signal extender that connects via fiber optic cable with IP as the main protocol. It adopts professional functions of the over IP KVM solution, allowing remote access to the computer system from a remote USB control unit through the internal network.。

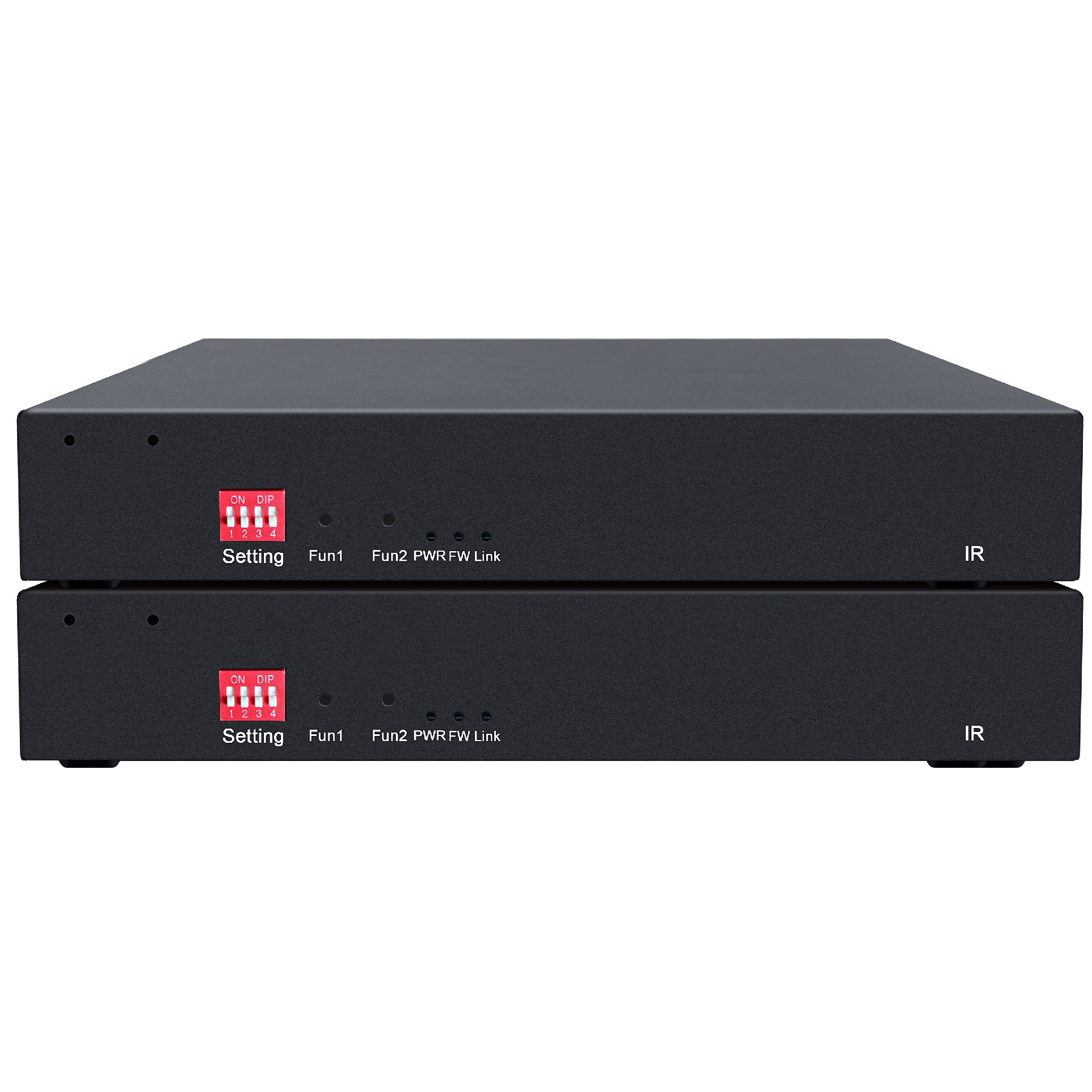

4KHDMIKVM Optical Fiber Extender

1. An all-in-one network ultra HD video KVM extender that integrates DP video signals, USB keyboard/mouse control signals, USB2.0HUB functionality (including USB devices like USB drives, UKEYs, printers, and touchscreens), RS232 interface signals, bidirectional audio signals, SFP optical ports, and features a rugged metal casing.

2. Using gigabit digital encoding technology, the local sending end of the device is connected to the HDMI video signal and USB control signal of the computer host, and then connected to the receiving end of the extender through optical fiber. The extension can be up to 20km, and the user can use the computer at the receiving end.。

3. Supports 4K x 2K resolution (up to 3840 x 2160@60Hz) for exceptional display quality. It delivers high-quality video with ultra-low latency, making it ideal for education, banking, healthcare, and confidential office environments.。

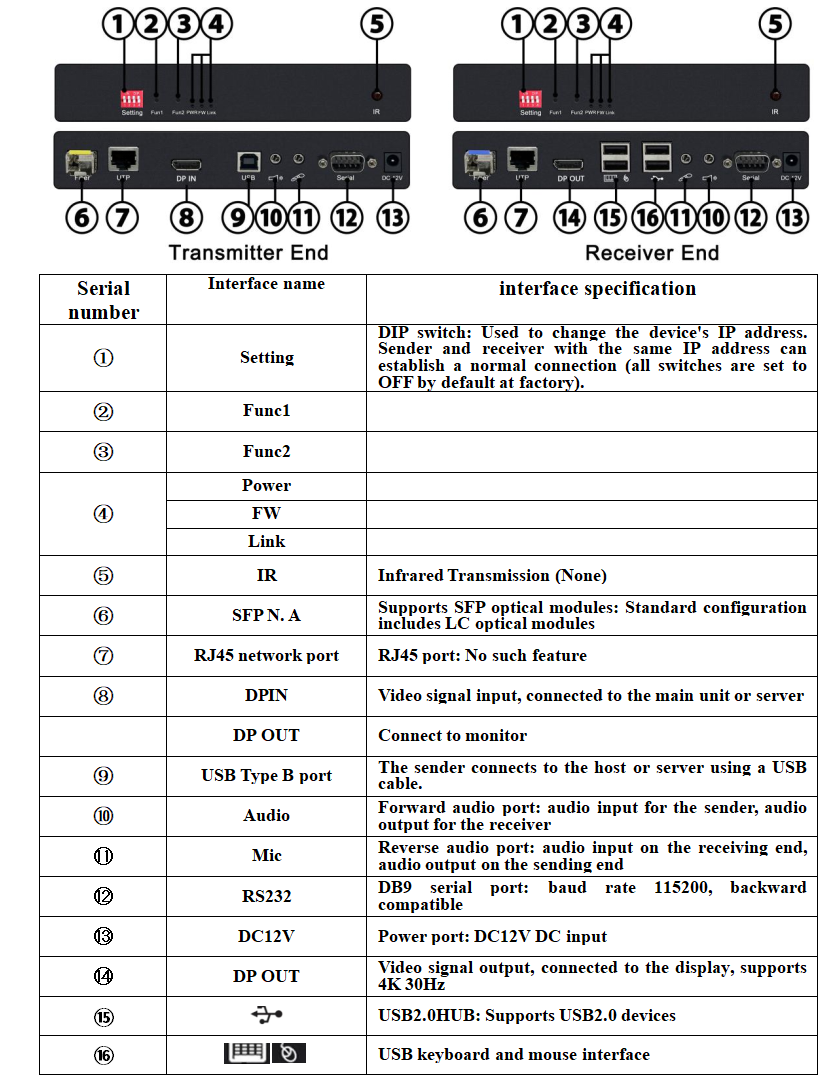

Interface Diagram

functional characteristics

l Using gigabit digital coding technology, the image is clear and smooth with small delay;

l Low latency (2ms)

l Independent bidirectional audio transmission;

l DP Digital Audio and DP Audio Separation

l USB 2.0 HUB capability (supporting USB devices such as USB flash drives, printers, wireless keyboards/mice, and touchscreens);

l Transmission via optical modules extends the distance by 20 kilometers.

l DP2.1 interface

l Supports 3840 x 2160@60Hz, YUV444, and backward compatibility with various standard resolutions.

l Dolby Vision 、HDR10、HDR10+

l LPCM up to 12 channels, Dolby Digital Enhancement, Dolby TrueHD, DTS HD Main Audio, Dolby Atmos

l The device boasts four powerful USB ports, designed to meet the demands of high-capacity USB devices.

l IP cascading allows you to ignore distance

l Hot-swappable design, plug and play;

attended operation

1. First, verify that the dial code switch encoding on both the sending and receiving ends matches.

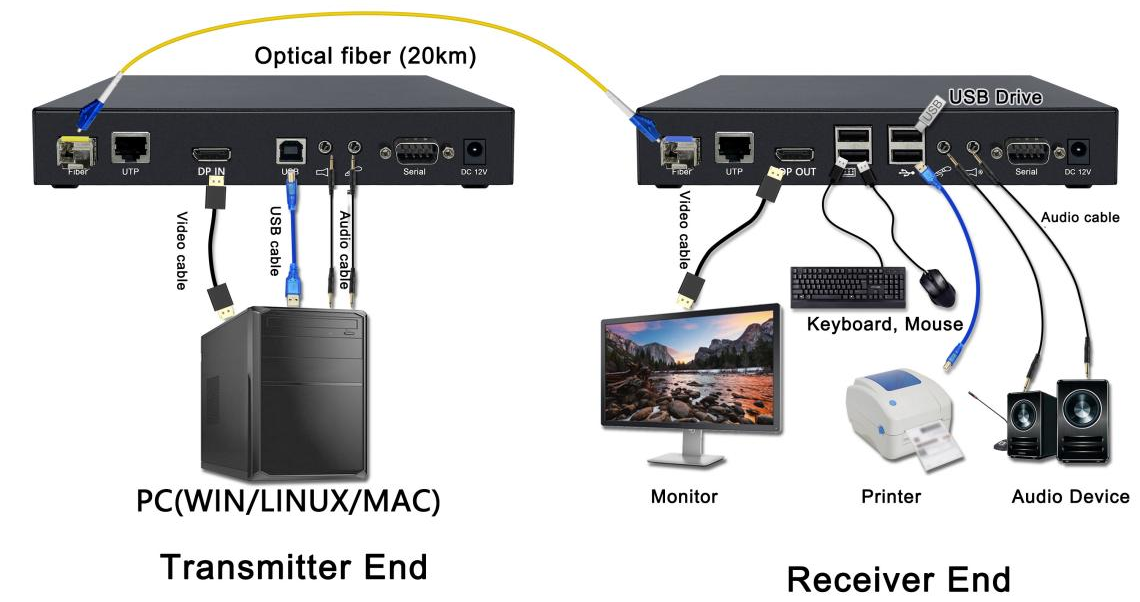

2. The transmitter connects to the controlled host via standard video cables, USB cables, and audio cables.

3. The receiver connects to monitors, audio devices, USB keyboards, mice, and other USB devices.

4. The transmitter and receiver are connected via network cable or fiber optic (with optional switch).

5. Connect the power supply of the transmitting end and the receiving end;

6. The sender and receiver display the connection status through indicator lights;

7. Supports hot-swapping, allowing you to add or remove controlled devices at any time without shutting down the KVM power.

8. Cross-platform support for mainstream operating systems including Windows, Linux, and Sun.

Note: Change the dial code and power off the device to restart it.
